In reality, even an object of type “user” (domain account) can be configured with the Kerberos Unconstrained Delegation, in this way such domain account will be able to impersonate another domain account to authenticate against target APs (services), however, to do this it is necessary that such account has at least 1 SPN configured, in fact only in this specific case the “Delegation” tab will appear inside the property of the user object. This configuration sets in the “UserAccountControl” property of the object in question the flag “TRUSTED_FOR_DELEGATION” to “TRUE” / “1”.

Every object of type “User” and type “Computer” has an attribute called “UserAccountControl”, this attribute is a value that represents the set of flags (configurations) set on the object (the most common are DONT_REQUIRE_PREAUTH, NOT_DELEGATE, etc.), for example 514 indicates that the domain user is disabled.

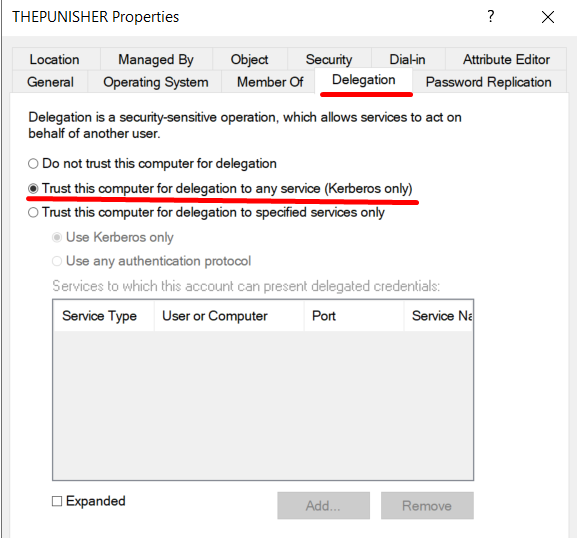

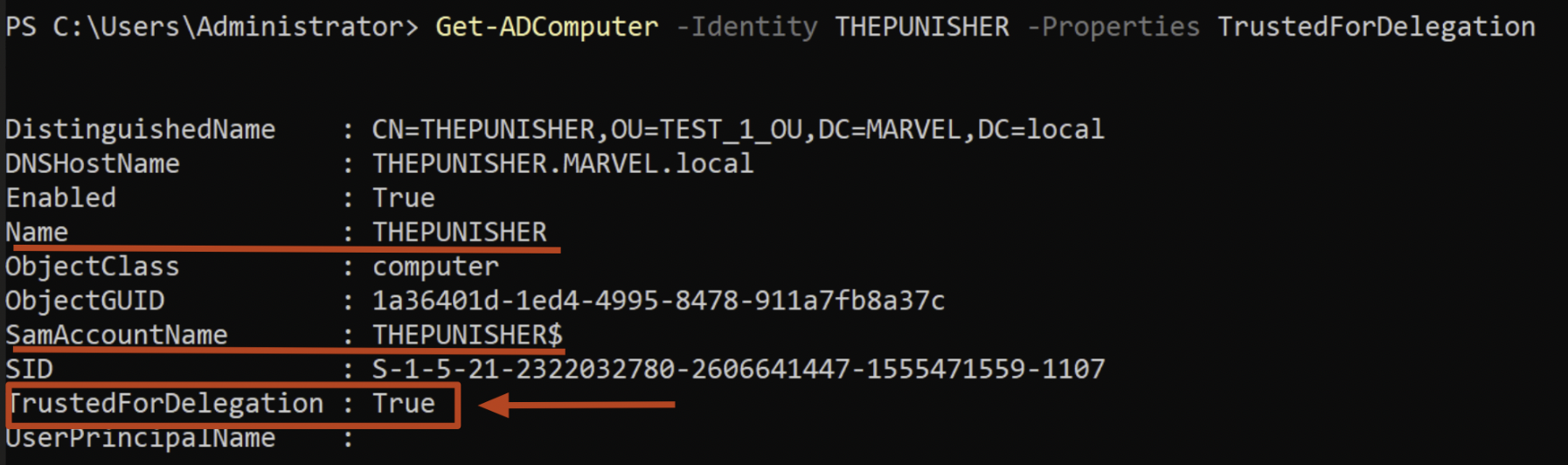

In our example the Kerberos Delegation is configured on the Computer “THEPUNISHER” which will act as the “Front-End” AP, this modification is actually reflected on the related Computer Account since it is contained in the “Computer” object (therefore the Computer Account THEPUNISHER$ will have the flag “TRUSTED_FOR_DELEGATION” set to “TRUE” / “1”), this means that any service started by this computer with the Service Account THEPUNISHER$ (Computer Account) will have the Kerberos Unconstrained Delegation enabled (so, all services started with the Local Service account such as by default the CIFS service).

By default ALL Domain Controllers have the Kerberos Unconstrained Delegation enabled.

2. Configure the domain user that performs Kerberos authentication to the “Front-End” AP as “relayable”.

It is necessary that the domain user that performs Kerberos authentication to the “Front-End” AP does NOT have the “NOT_DELEGATED” flag set to “TRUE” / “1” in the “UserAccountControl” property; if it is, then that user is NOT delegable, by default ALL domain users do NOT have this flag enabled and are therefore relayable.

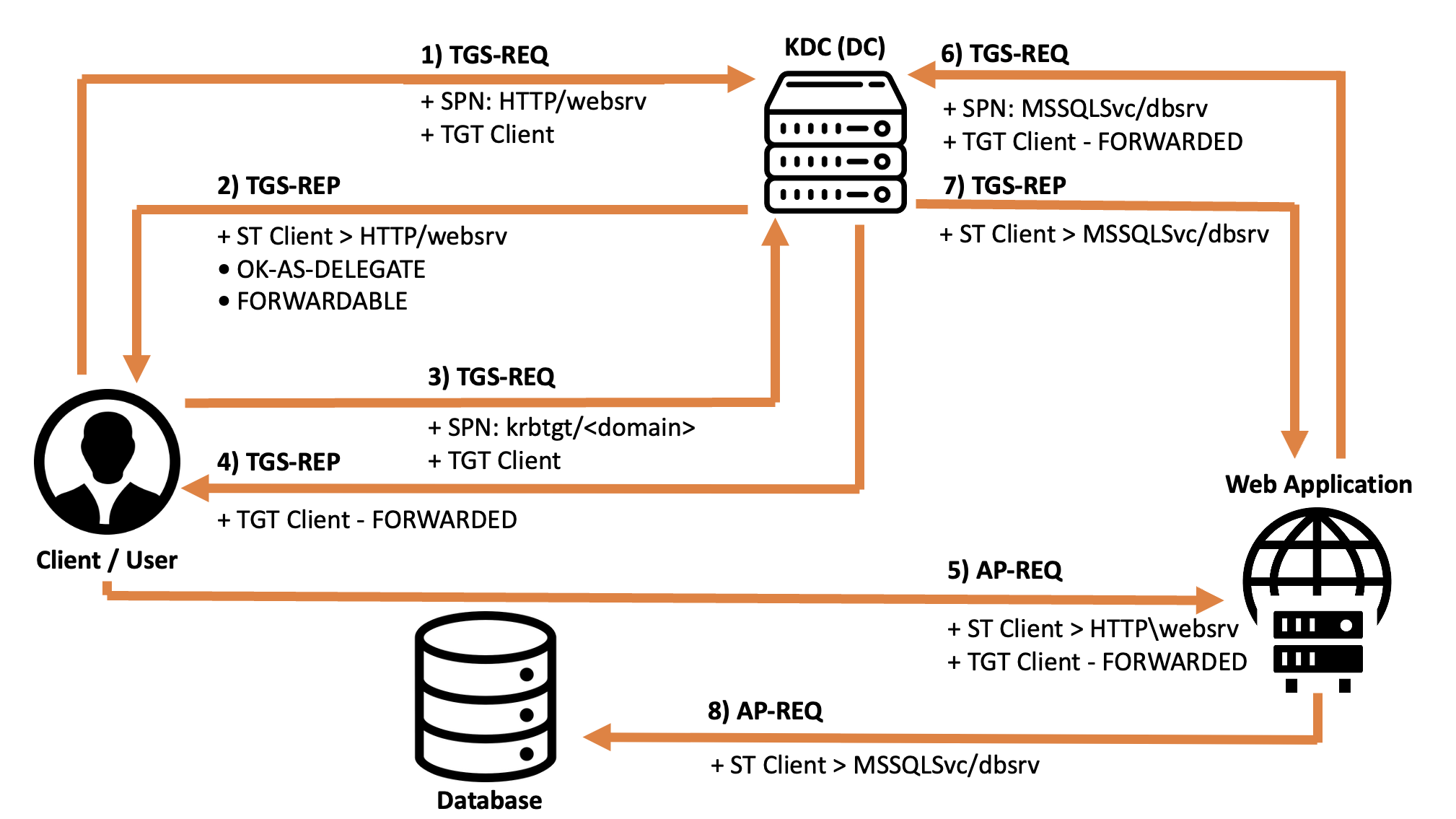

Below we see the flow of a Kerberos authentication with “Unconstrained Delegation” enabled:

To simplify the creation of the lab, even though this would hardly happen in reality, in the following screenshots the Front-End AP will be the CIFS service hosted on the THEPUNISHER computer (this service, having “Local System” as Service Account, in a Kerberos context the Service Account will be the Computer Account THEPUNISHER$), in reality, usually, a Front-End AP could be a Web Application.

The “KRB_AP_REP” packet (“AP Front-End” -> “Client” & “AP Back-End” -> “AP Front End”) required by the Mutual Authentication could be sent in different times based on the Windows machine version used inside the infrastructure, this is the reason why i have not putted them on the image.

Integrity and authenticity verification operations that occur within traditional Kerberos authentication (sending & analyzing the “Authenticator” along with the related “Session Key” used to encrypt & decrypt parts of the packet) are also present with Unconstrained Delegation enabled, but in this case they will NOT be mentioned, because they have already been generally described previously (for a complete analysis in the context of Unconstrained Delegation see this guide) and because it was preferred to instead emphasize the unique characteristics of Kerberos Unconstrained Delegation.

As already mentioned previously, below we will describe the traditional process where Kerberos with Unconstrained Delegation enabled is used, that is, from an Interactive Logon where a user enters their credentials within a WinLOGON GUI, and then subsequently uses Kerberos again in a Network Logon (roughly using cached credentials) to authenticate to a target service with Kerberos Unconstrained Delegation enabled; that said, in reality, the authentication process can also start in other types of authentications besides the traditional WinLOGON GUI (Interactive Logon).

Introduction: Initially, the Client (after the domain user has entered their credentials for an Interactive Logon) makes a request for a TGT Ticket & TGS Session Key (KRB_AS_REQ) to the KDC and it responds (KRB_AS_REP) providing the requested data (if positive, in summary, the Client grants access to the domain user).

1. KRB_TGS_REQ The Client provides its own TGT Ticket to the KDC to request the TGS Ticket.

Now that a domain user has already authenticated to a Client (using Kerberos) and already possesses the TGT with a TGS Session Key, if they need to perform a “Network Logon” the Kerberos protocol comes into play again, specifically the Client will use the TGT and the TGS Session Key to request another type of ticket called the TGS Ticket.

The Client presents to the KDC (no longer to the AS feature) a KRB_TGS_REQ which in summary contains:

• Ticket TGT: The previously received TGT ticket (to exchange it for a TGS Ticket)

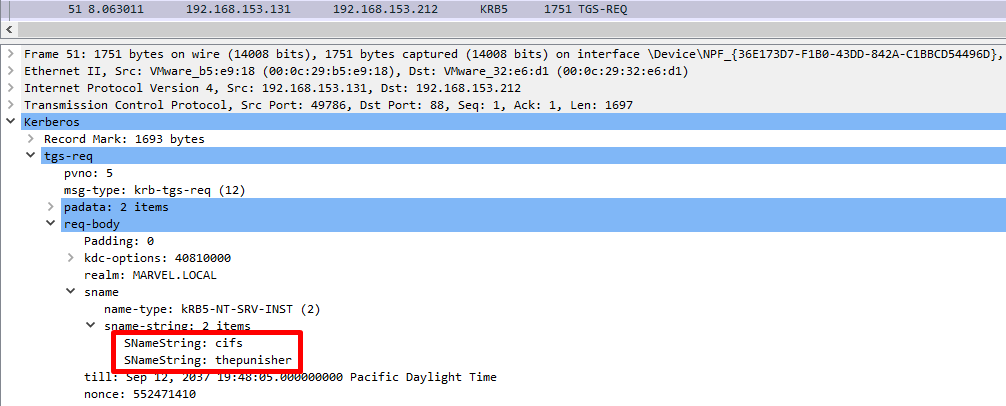

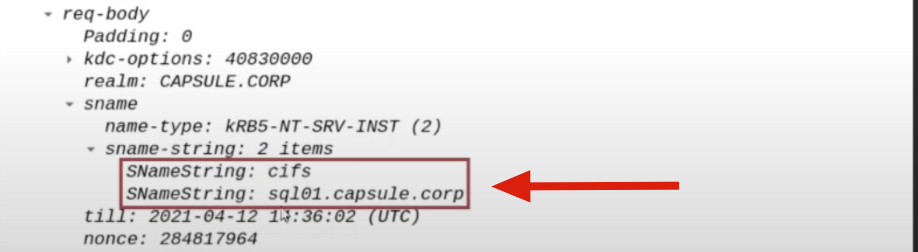

• SPN: The SPN related to / pointing to the service the Client needs to connect to via SSO is sent in plain-text, in this case it refers to the AP Front-End, such as the SPN “HTTP/Charlotte.medin.local” or “CIFS/THEPUNISHER”, in the first one the authentication will be to the HTTP service on the Hostname “Charlotte.medin.local” while in the second one to the CIFS service on the Hostname THEPUNISHER.

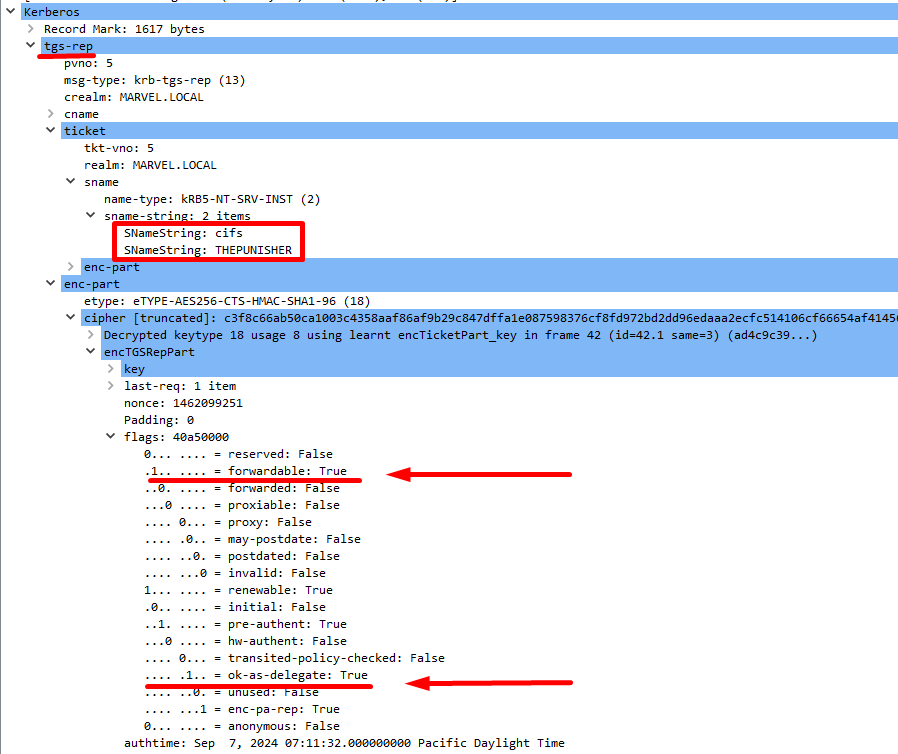

2. KRB_TGS_REP: The KDC sends the TGS Ticket to the Client BUT specifying that the requested service has the Kerberos Unconstrained Delegation enabled.

The KDC receives the KRB_TGS_REQ packet and after performing the usual checks sees that the SPN contained within, in this example “CIFS\THEPUNISHER”, points to the CIFS service hosted on the computer THEPUNISHER which has as Service Account the “Computer Account” THEPUNISHER$ (in Kerberos context), since this “Computer Account” has the TRUSTED_FOR_DELEGATION flag enabled, it means the CIFS service on the computer THEPUNISHER has Kerberos Unconstrained Delegation, consequently the KDC responds to the Client with a “KRB_TGS_REP” containing, in summary:

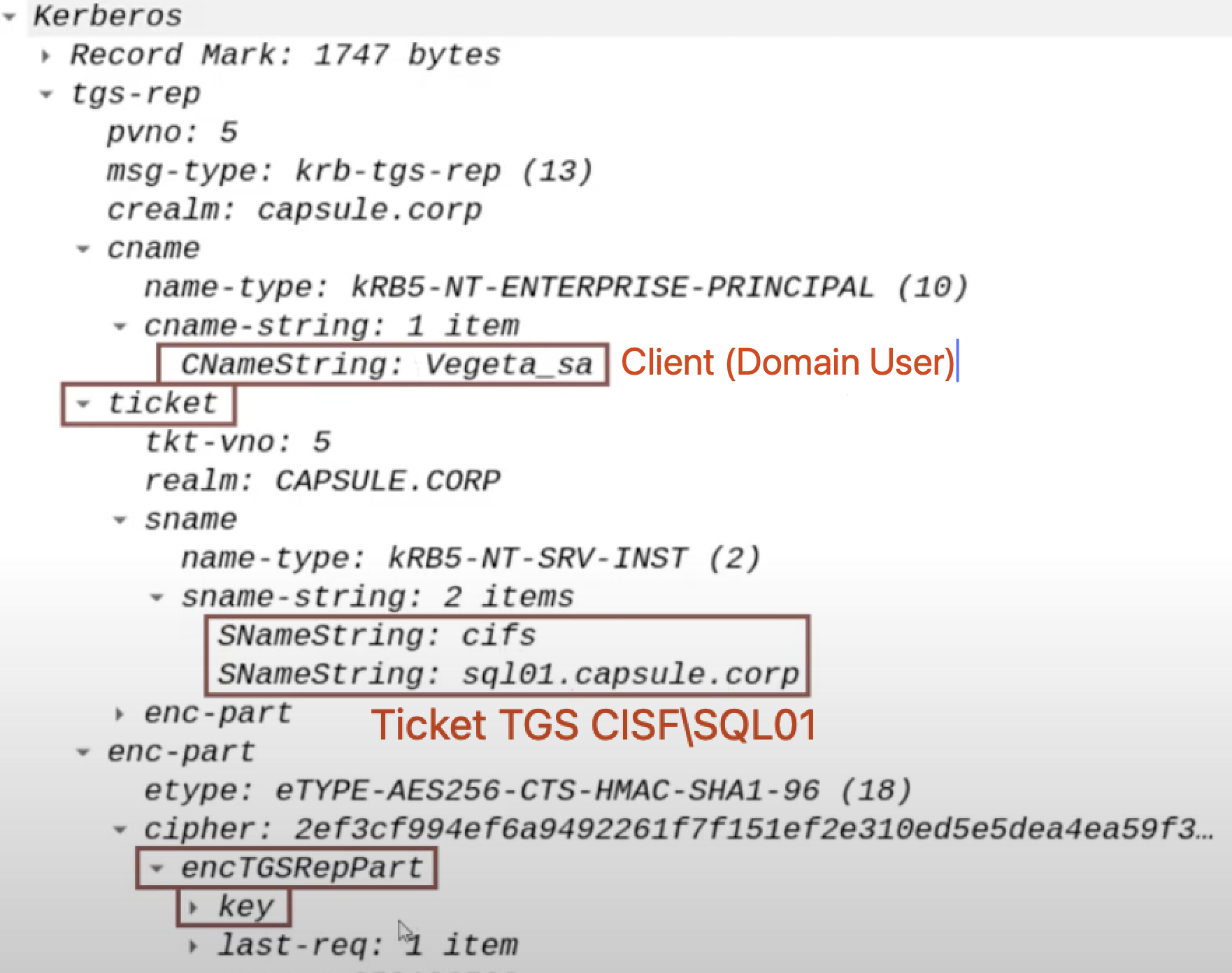

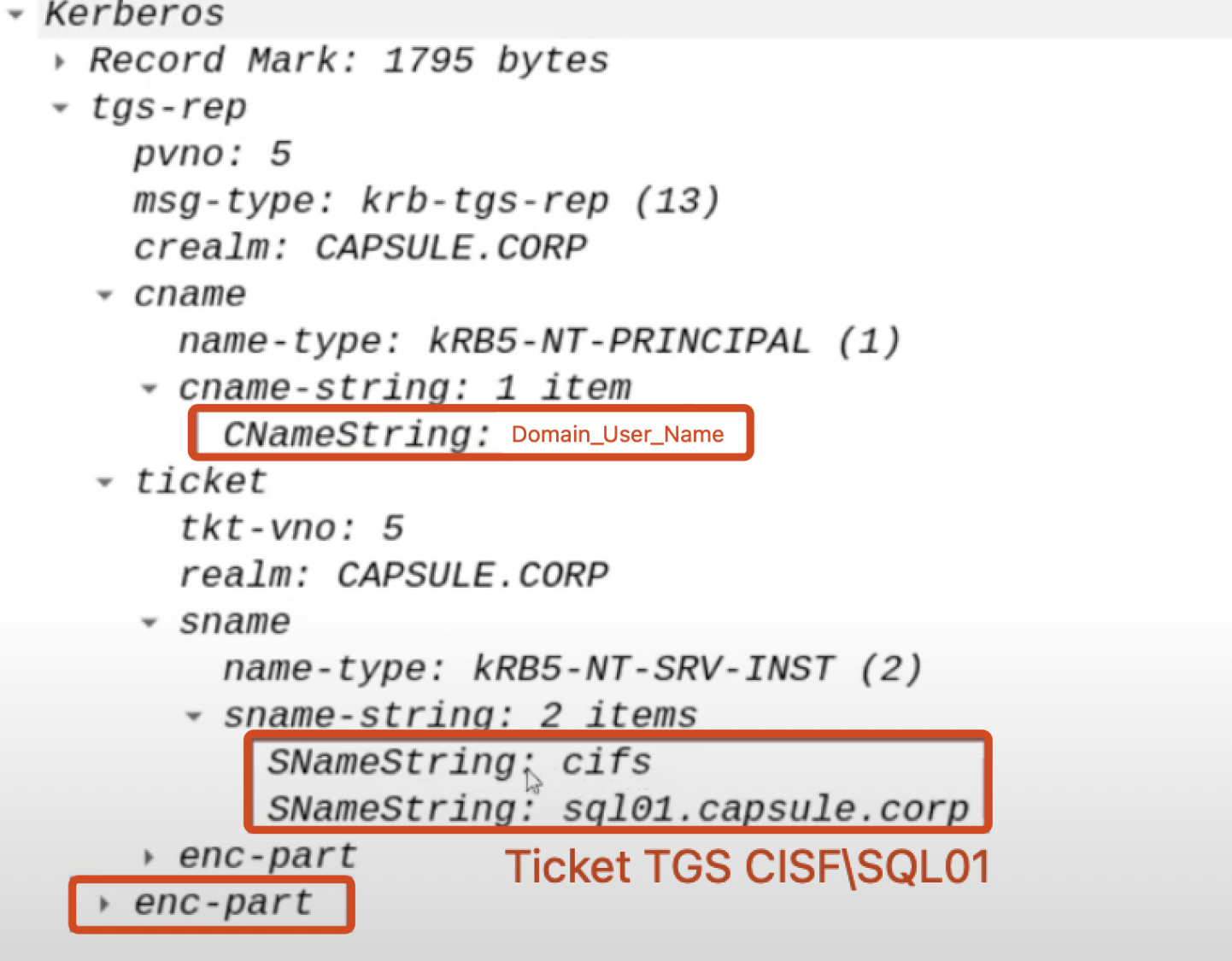

• Ticket TGS: The TGS Ticket for the AP “Front-End” (CIFS Service hosted on “THEPUNISHER”) BUT with the flag “OK-AS-DELEGATE” set to TRUE

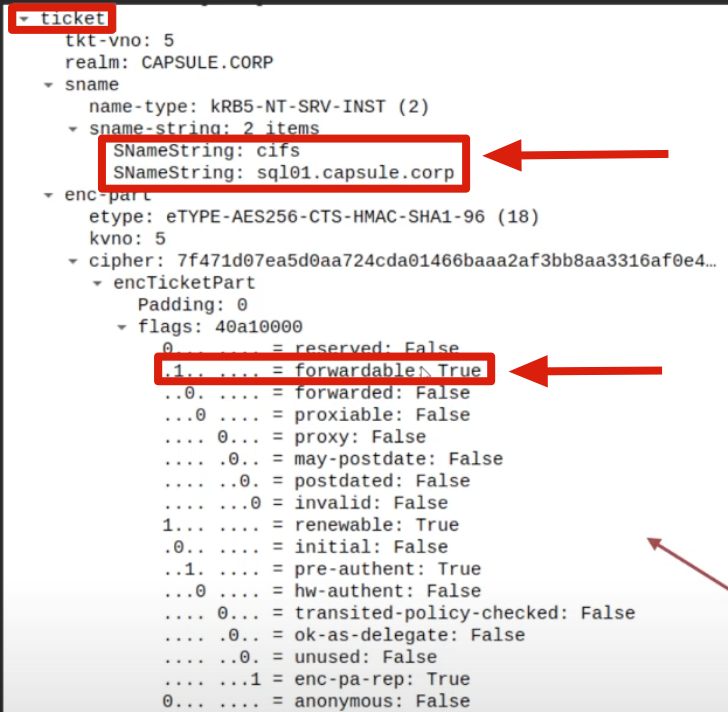

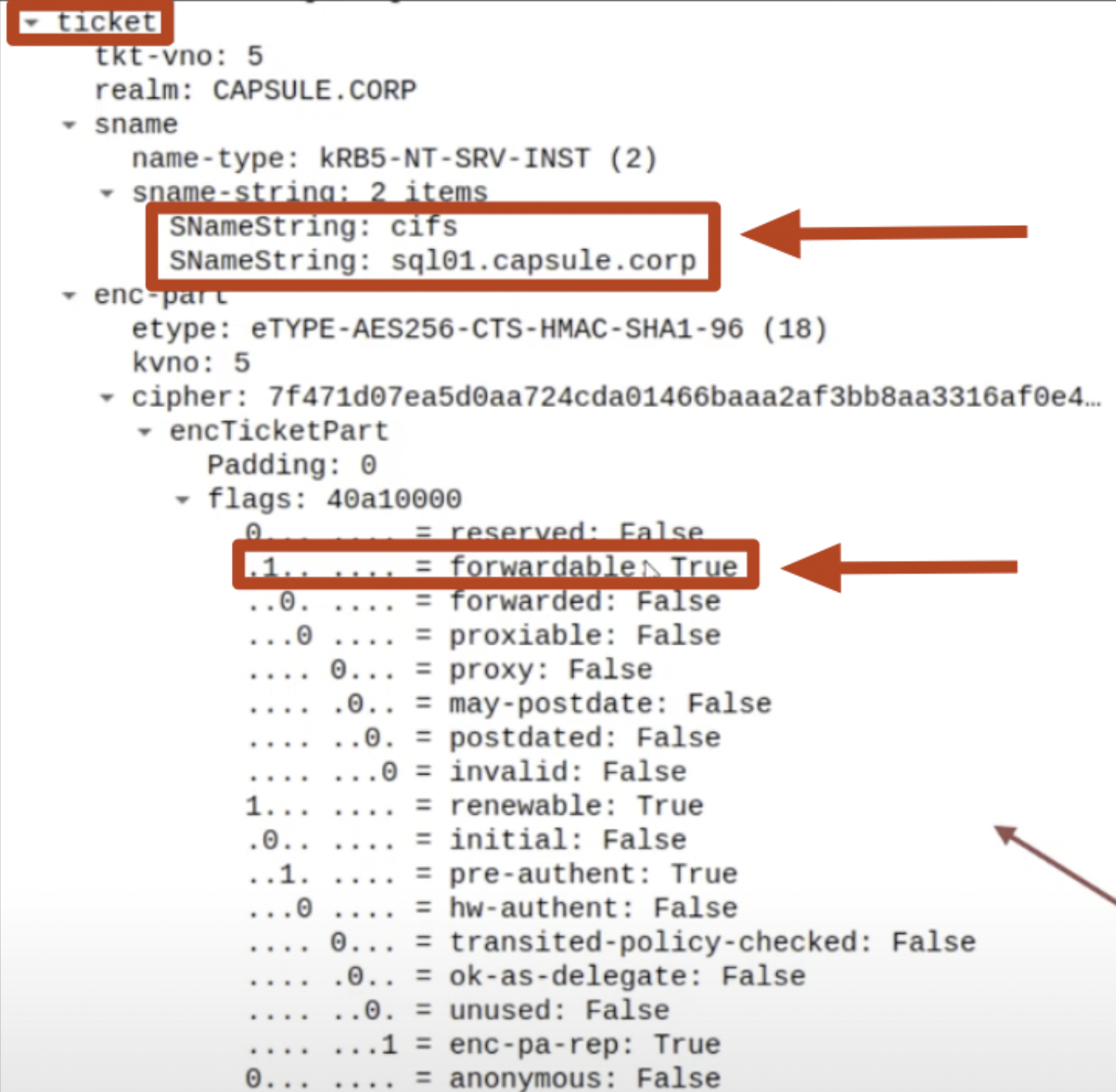

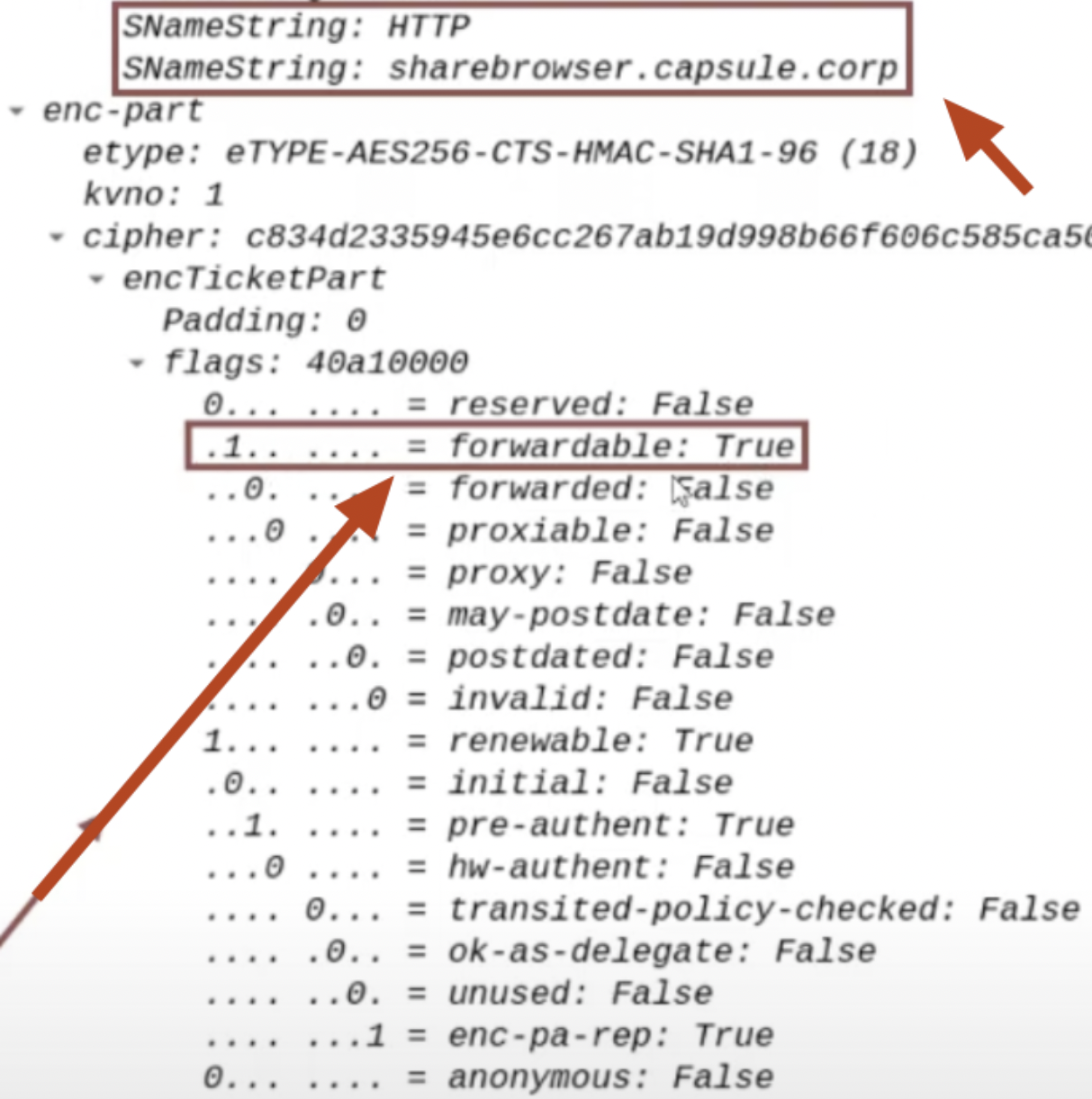

The “FORWARDABLE” flag is also set to TRUE

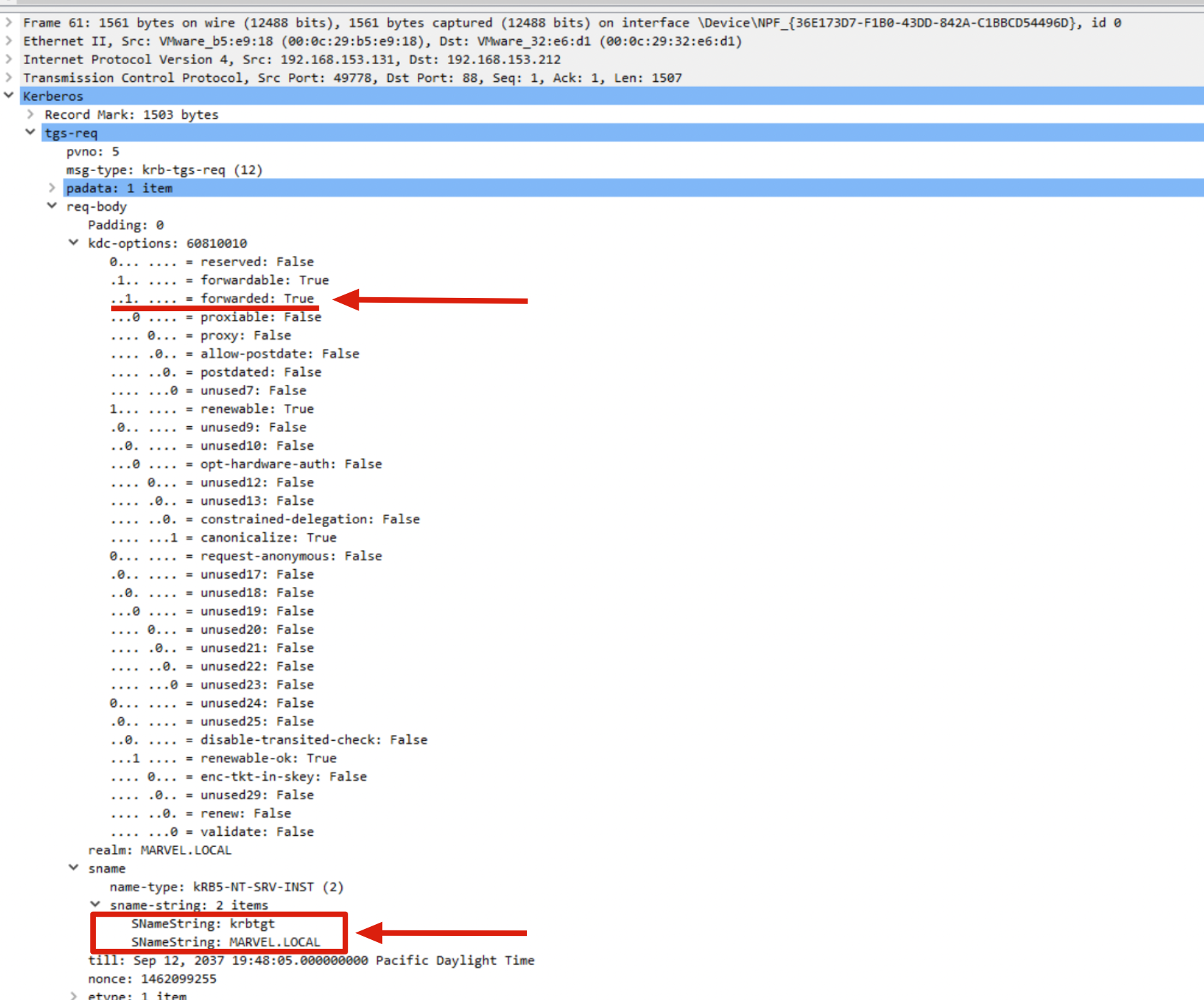

3. KRB_TGS_REQ: The Client requests a “Ticket TGT Forwarded” from the KDC.

The Client receives the packet and after performing the usual checks sees that the TGS Ticket received has the “OK-AS-DELEGATE” flag set to TRUE, this flag indicates to the Client that the service the domain user needs to access, namely the AP Front End, has Kerberos Unconstrained Delegation enabled, consequently the Client sends again a “KRB_TGS_REQ” containing, in summary:

• Previously received TGT Ticket: The previously received TGT Ticket (to exchange it this time for a “Forwarded TGT Ticket”)

• Other Data: Since the Client knows that the AP Front End has “Kerberos Unconstrained Delegation” configured, it choose to requests a so-called “Forwarded TGT Ticket”, for this purpose inside this Kerberos packet the Client specifies:

  • The SPN related to the Kerberos service (KDC) of the Domain Controller which is “krbtgt/<domain>” (analogous to what happens in a KRB_AS_REQ but this time in a KRB_TGS_REQ)

  • The “FORWARDED” flag set to TRUE

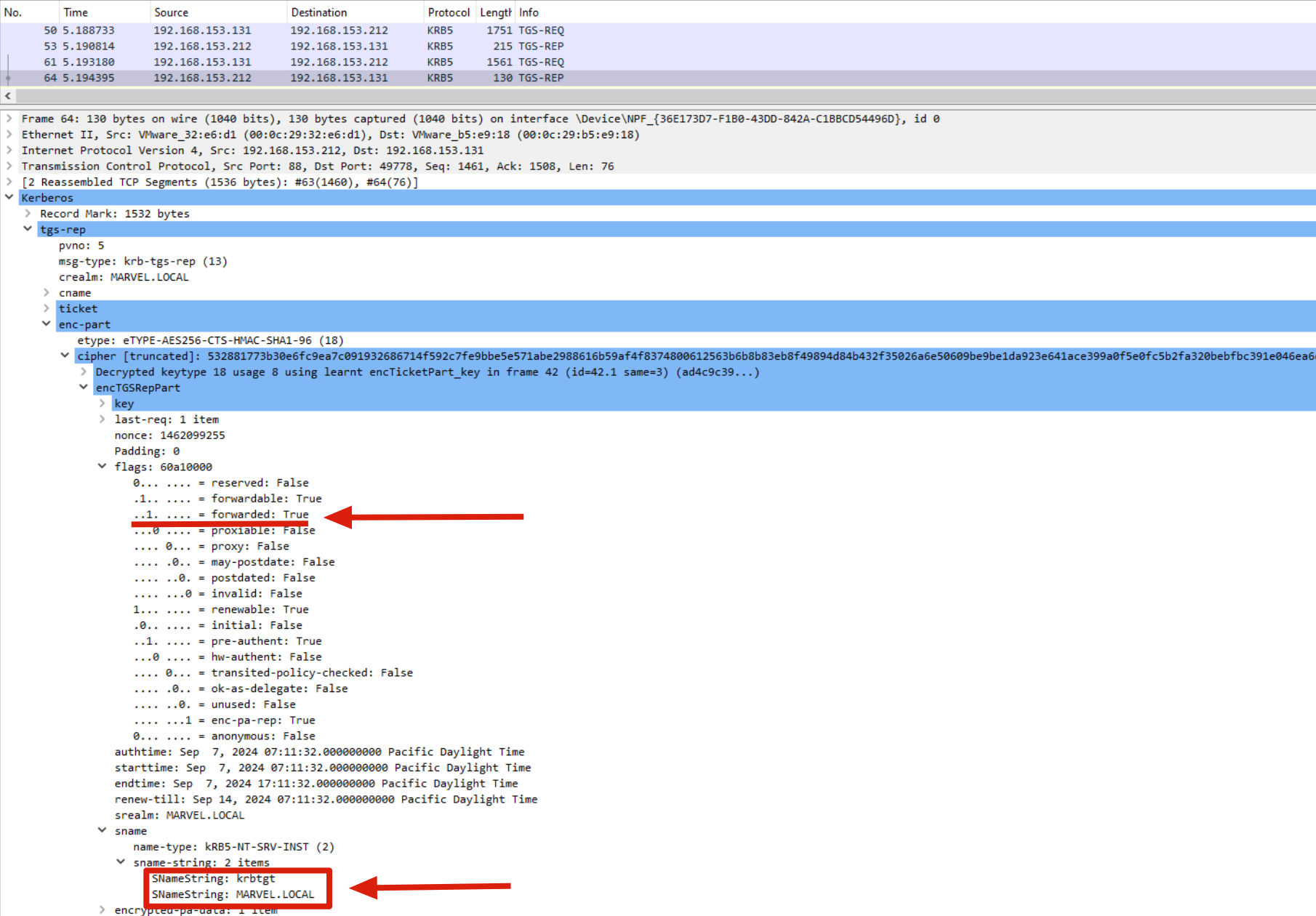

4. KRB_TGS_REP: The KDC sends a “Ticket TGT Forwarded” to the Client

The KDC, after performing the usual checks, since it previously sent a KRB_TGS_REP specifying that the service requested by the Client supports Kerberos Unconstrained Delegation, verifies if within the new KRB_TGS_REQ received the “FORWARDED” flag is set to TRUE, if positive, the KDC responds to the Client with a “KRB_TGS_REP” containing, in summary:

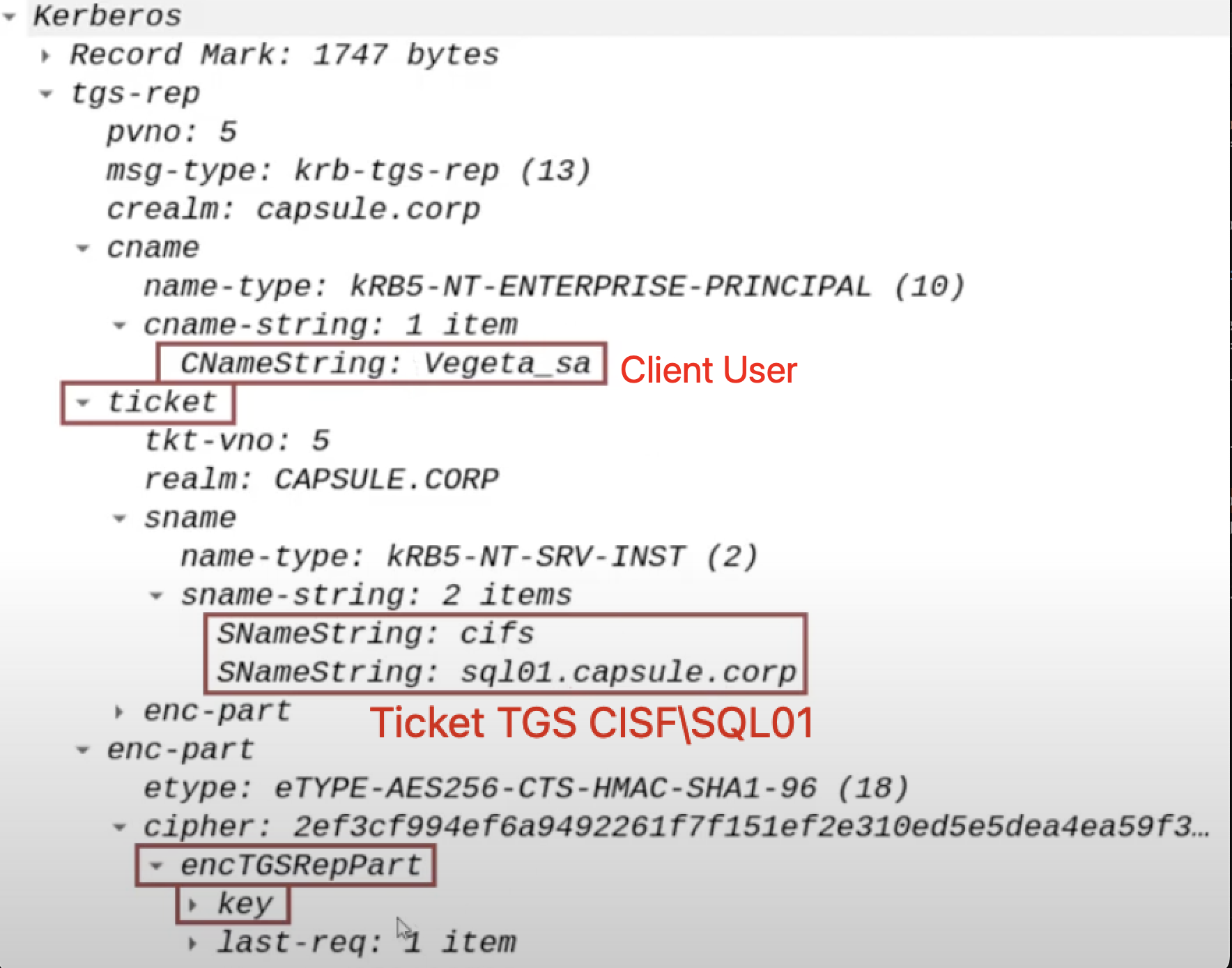

• The “Forwarded TGT Ticket”: The KDC sends to the Client a so-called “Forwarded TGT Ticket”, that is a TGT Ticket with the “FORWARDED” flag set to True (which contains like always the PAC of the Client’s domain user).

I want to highlight that the KDC sent a “Forwarded TGT Ticket” within the encrypted part of a KRB_TGS_REP, in a traditional Kerberos authentication the KDC would issue a TGT Ticket exclusively in a KRB_AS_REP.

5. KRB_AP_REQ: The Client attempts to access the Front-End AP by providing its own TGS Ticket BUT also sharing the so-called “Ticket TGT Forwarded”.

The Client, after the usual checks, in summary, sends a “KRB_AP_REQ” packet to the AP Front-End (in this case to the CIFS service hosted on the computer THEPUNISHER) containing:

• Ticket TGS: A TGS Ticket that points via SPN to the AP Front End (in this example CIFS\THEPUNISHER)

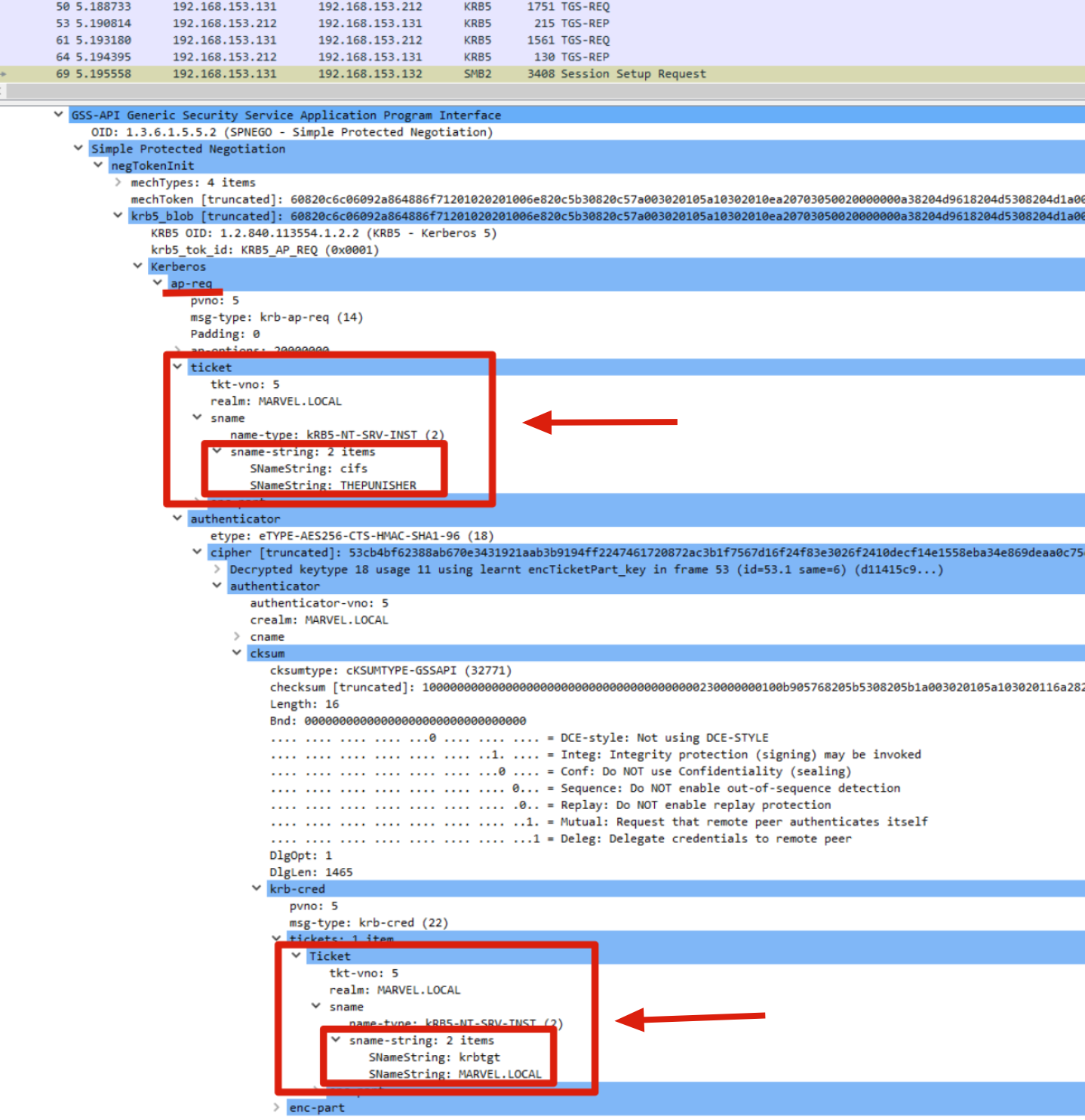

• Forwarded TGT Ticket: The “Forwarded TGT Ticket” that the Client received in the previous “KRB_TGS_REP”.

I want to highlight that the “Forwarded TGT Ticket” sent is contained within the “authenticator” field of the “TGS Ticket”.

---

So, what happens now?

The AP Front End, now having received the KRB_AP_REQ packet, in summary, after the usual checks, performs the following actions:

1. The AP Front End will allow (if the AUTHORIZATION phase goes correctly) the Client access to the requested service (in this case the CIFS service hosted on the computer THEPUNISHER), subsequently, depending on the requested service and if mutual authentication is required by the Client, the AP Front End will send a KRB_AP_REP to the Client.

In my home lab the KRB_AP_REP packet was sent in this scenario, in this other case, however, the KRB_AP_REP packet was delivered to the Client only at the end of the entire process.

2. The AP Front End will now extract the “Forwarded TGT Ticket” contained within the TGS Ticket and cache it locally to potentially impersonate the Client in future interactions.

---

If the AP Front End needs to authenticate to an AP Back End on behalf of the Client, the following actions will occur:

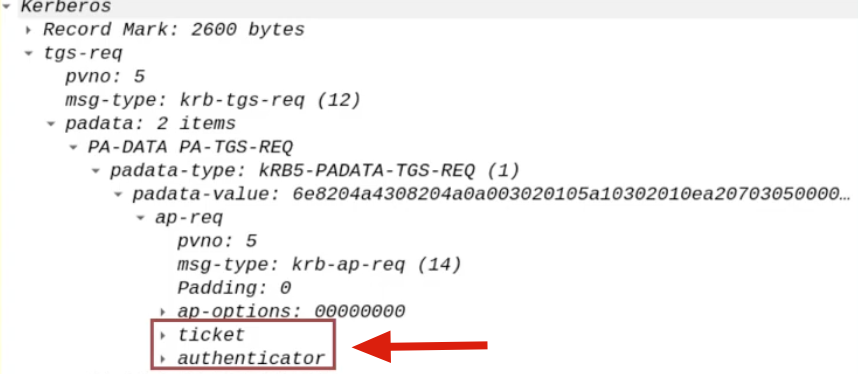

6. KRB_TGS_REQ: The Front-End AP provides the Client’s “Ticket TGT Forwarded” to the KDC to request a TGS Ticket.

Occasionally, when the AP Front End will need to authenticate to the AP Back End on behalf of the Client, the AP Front End will send to the KDC a “KRB_TGS_REQ” packet built as already indicated previously, with the only difference that the Client’s “Ticket TGT Forwarded” will be shared instead (it contains the domain user’s PAC), in this way the AP Front End will be able to obtain a valid TGS Ticket to authenticate to the AP in the Back-End on behalf of the Client.

7. KRB_TGS_REP: The KDC sends the TGS Ticket to the Front-End AP.

The KDC, in summary, after the usual checks, will provide the AP Front End with a TGS Ticket specific for the AP in the Back End.

As already said, the PAC of the TGS Ticket is a copy of the PAC contained in the provided TGT Ticket, consequently the TGS Ticket that the KDC will provide to the AP Front End will still belong to the Client.

8. KRB_AP_REQ: The AP Front End presents the TGS Ticket to the AP Back End to authenticate on behalf of the Client.

The AP Front End will send a “KRB_AP_REQ” packet to the AP Back End, authenticating by essentially sharing the previously received TGS Ticket, since this TGS Ticket belongs to the Client (it contains the domain user’s PAC), the AP Front End will authenticate to the AP Back End on behalf of the Client.

Finally, if the AP Front End requests mutual authentication, the AP Back End will reply to the AP Front End with a “KRB_AP_REP”.

This is what happens in my home lab, in this other case instead, the “KRB_AP_REP” packet is first sent from the AP Back End to the AP Front End and then as already told another “KRB_AP_REP” from the AP Front End to the Client.

Behaviour Change about Kerberos Delegation on Modern Windows System.

Microsoft has several bad habits: the first is continuously changing the names of their products (it’s a serius issue 😭​), while the second is modifying the logic of some of its widely used features, including Kerberos Delegation, without notifying it to anyone (it’s done intentionally).

The first time i approached the topic of Kerberos Delegation, this was a problem because analyzing the traffic of the “Constrained Delegation” & “RBCD”, the concepts i was studying online did not match; for this reason, I asked to Elad Shamir, the author of the awesome article who discovered these attacks, and he confirmed that Microsoft changed the behavior of delegation in 2021.

Since this article is for educational purposes, i decided to detail in the following sections both the Kerberos Delegation versions BEFORE-change and POST-change, highlighting at the key moments what modification was made; in this way, you will be able to orient yourself with the logic even when reading other guides on Kerberos Delegation.

Below, i’ll detail what modification Microsoft made in 2021; for narrative reasons, i preferred to detail it before explaining the the “Constrained Delegation” & “RBCD” flow.

So, if you do not understand what is written below it’s normal, you can skip it and come back later 😉​.

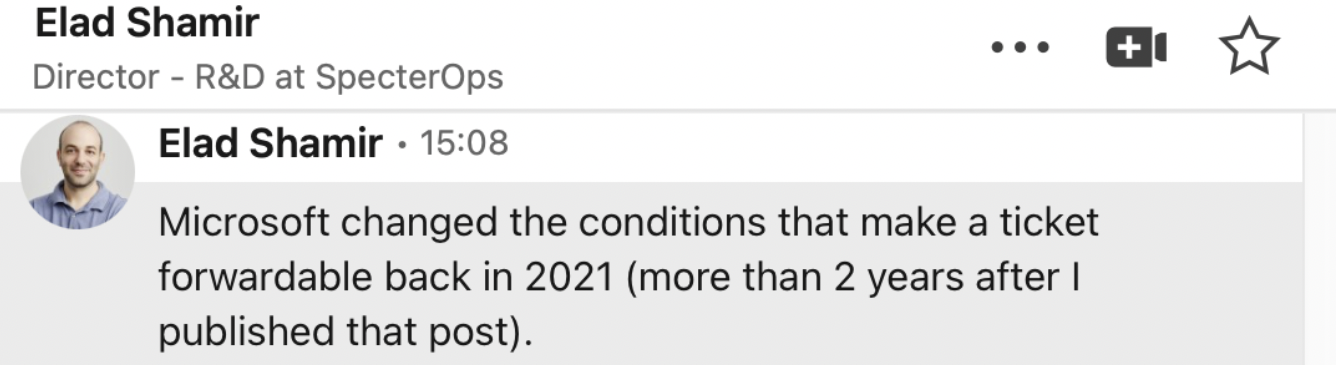

I asked the permission to take the screenshot 😃​

In 2021 Microsoft changed the conditions under which the KDC issues inside an S4USelf Response a TGS Ticket with the FORWARDABLE flag set to 1.

Instead of exclusively verifying the presence of the “TRUSTED_TO_AUTH_FOR_DELEGATION” flag, the KDC will instead perform two checks:

1. The KDC verifies if the Service Account of the AP Front End has the “TRUSTED_TO_AUTH_FOR_DELEGATION” flag set
2. The KDC verifies if the Service Account of the AP Front End has the “msds-allowedtodelegateto” property NOT empty (i.e., there are entries)

If BOTH checks are positive (so the AP Front End is configured in the context of Constrained Delegation (Kerberos Only) - or - the Client's domain user has the "Not Delegate" flag - or - is a member of the "Protected Users Group") then the issued TGS Ticket will have the FORWARDABLE flag set to 0 (otherwise the FORWARDABLE flag will always be 1).

This means that in a traditional “Resource Based Constrained Delegation (RBCD) scenario”, the flow in POST 2021 will be slightly different:

1. In a traditional RBCD scenario the AP Front End is NOT configured with Kerberos Delegation, consequently the AP Front End will receive in an S4USelf Response a TGS Ticket with the FORWARDABLE flag set to 1 (for the reason mentioned above) (instead, before 2021 the FORWARDABLE flag was set to 0)

2. When the KDC receives the KRB_TGS_REQ (S4U2Proxy) packet from the AP Front, it will perform 2 checks sequentially:

1. The KDC verifies if the TGS Ticket has the FORWARDABLE flag set to 1, in this case the result is POSITIVE (before 2021 this check would fail and here the KDC would switch to RBCD)

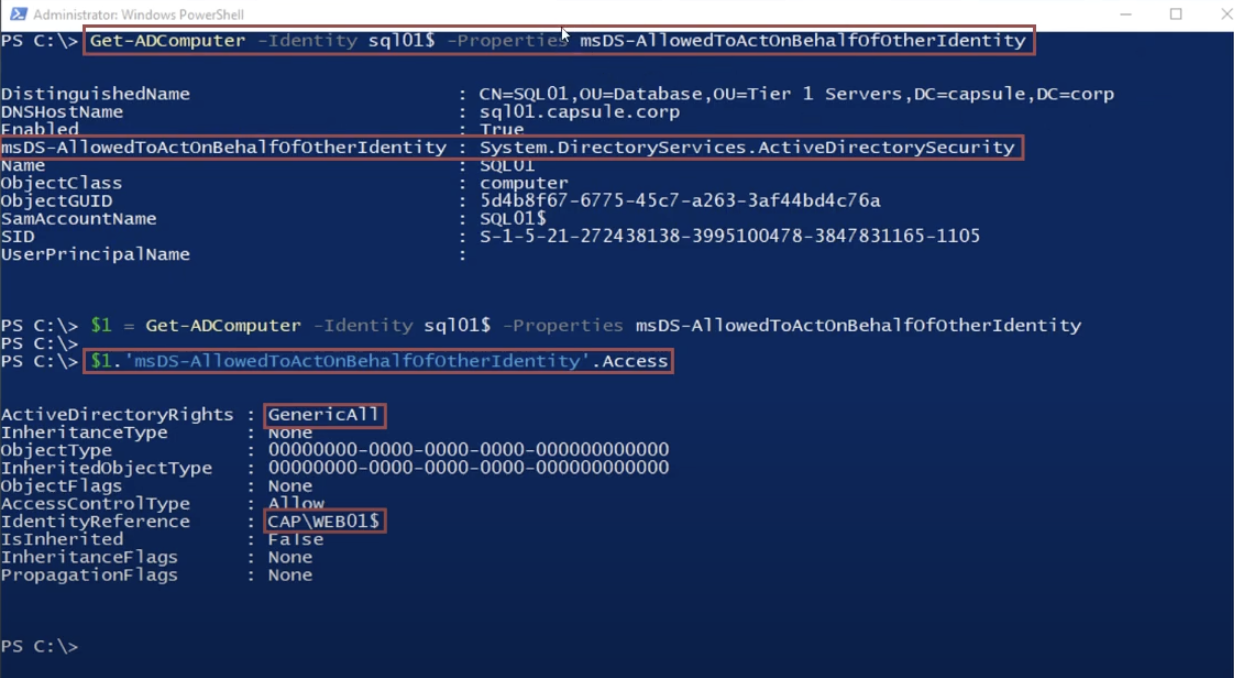

2. The KDC verifies if in the Service Account of the AP Front End there is the “msds-allowedtodelegateto” property containing the SPN of the requested AP Back End; in this case the result is NEGATIVE because the AP Front End does NOT have Kerberos Delegation enabled and for this reason it this property is NOT present, so the results is NEGATIVE and switch here to RBCD.

In summary, although Microsoft has changed their internals, the same previously discovered Kerberos Delegation attacks will keep to shine!

Constrained Delegation

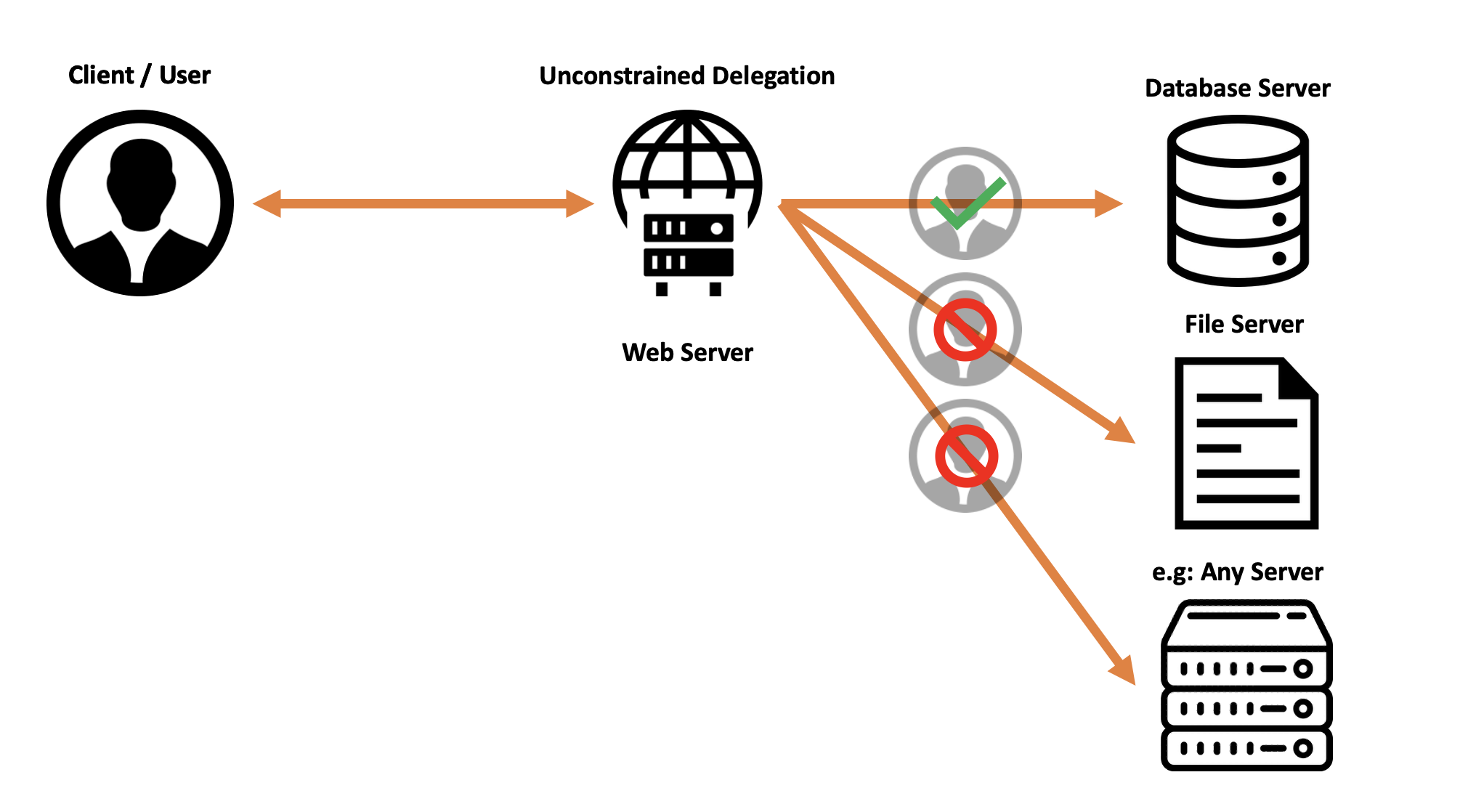

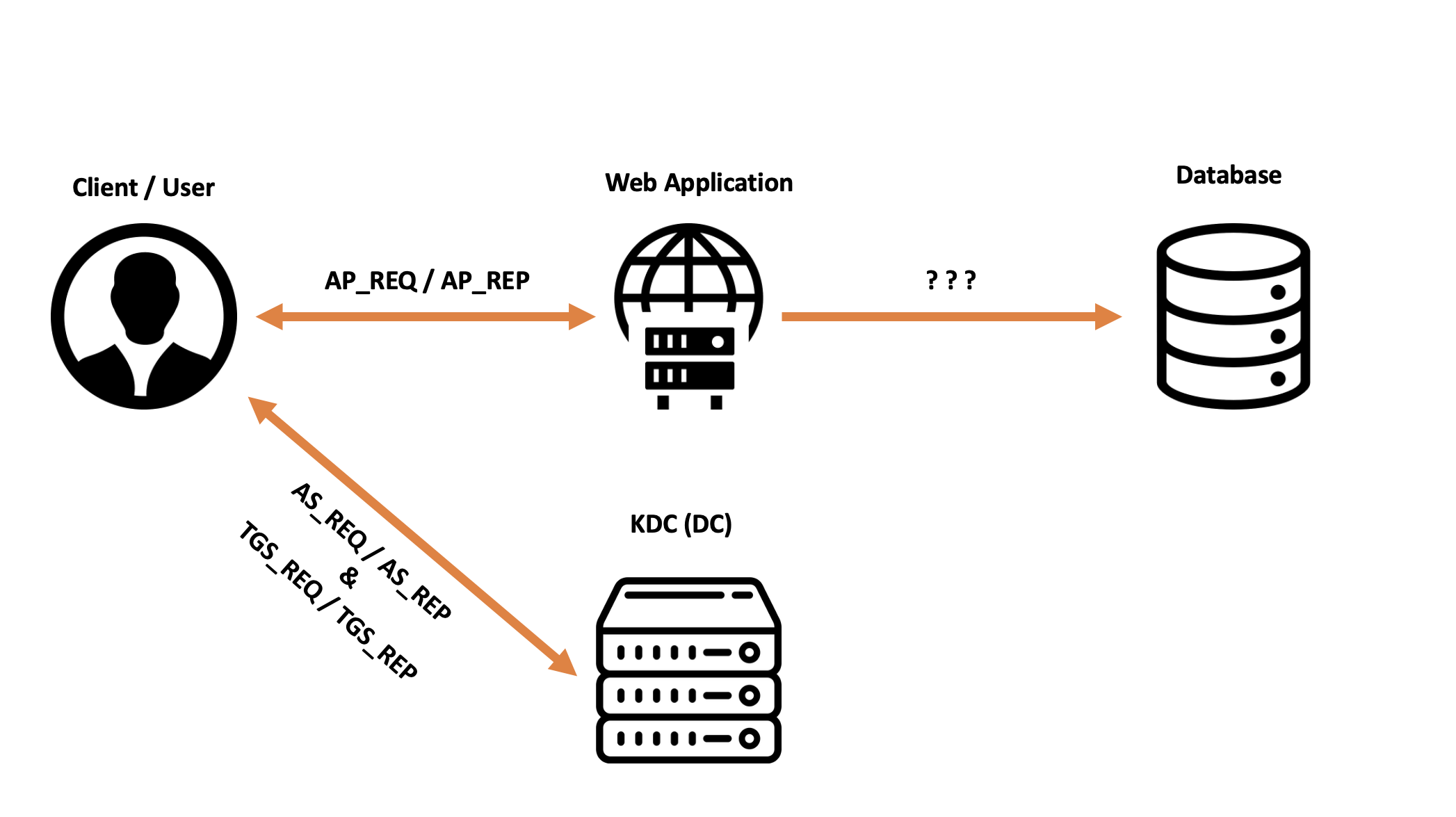

As we have seen, the “Unconstrained Kerberos Delegation” can be extremely dangerous since the AP Front End caches the Client’s TGT Ticket and can also impersonate the user towards ANY AP in the Back End, for this reason Microsoft developed a more restrictive (a.k.a “Constrained”) version of Kerberos Delegation called “Constrained Delegation”, specifically it supports 2 Kerberos extensions known as Service For User (S4U):

1. Service for User to Proxy (S4U2Proxy): Allows the AP Front End to obtain a TGS Ticket on behalf of the Client in order to use it in an authentication to the AP in the Back End.

2. Service for User to Self (S4U2Self): Allows the AP Front End to obtain a TGS Ticket valid for itself on behalf of any Client, such Ticket can be used by the AP Front End as evidence that the Client has authenticated to it.

By using these Kerberos extensions it is possible to restrict (Constrained) the functionality of Kerberos Delegation by ensuring that the AP Front End can authenticate on behalf of the Client exclusively to a predefined set of APs in the Back End, furthermore, to achieve this, the Client’s TGT Ticket is NOT required and therefore there is no risk of it being cached.

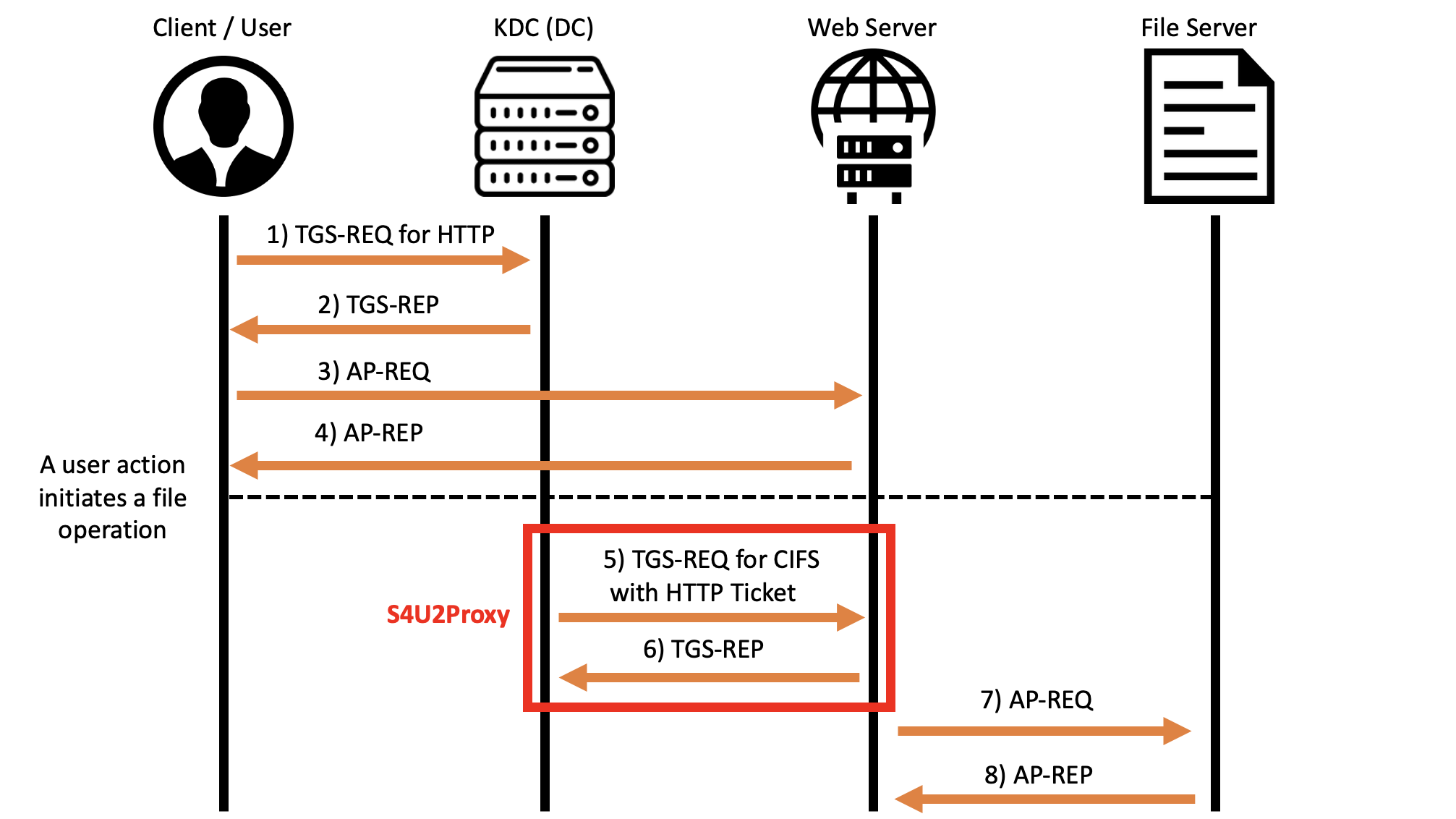

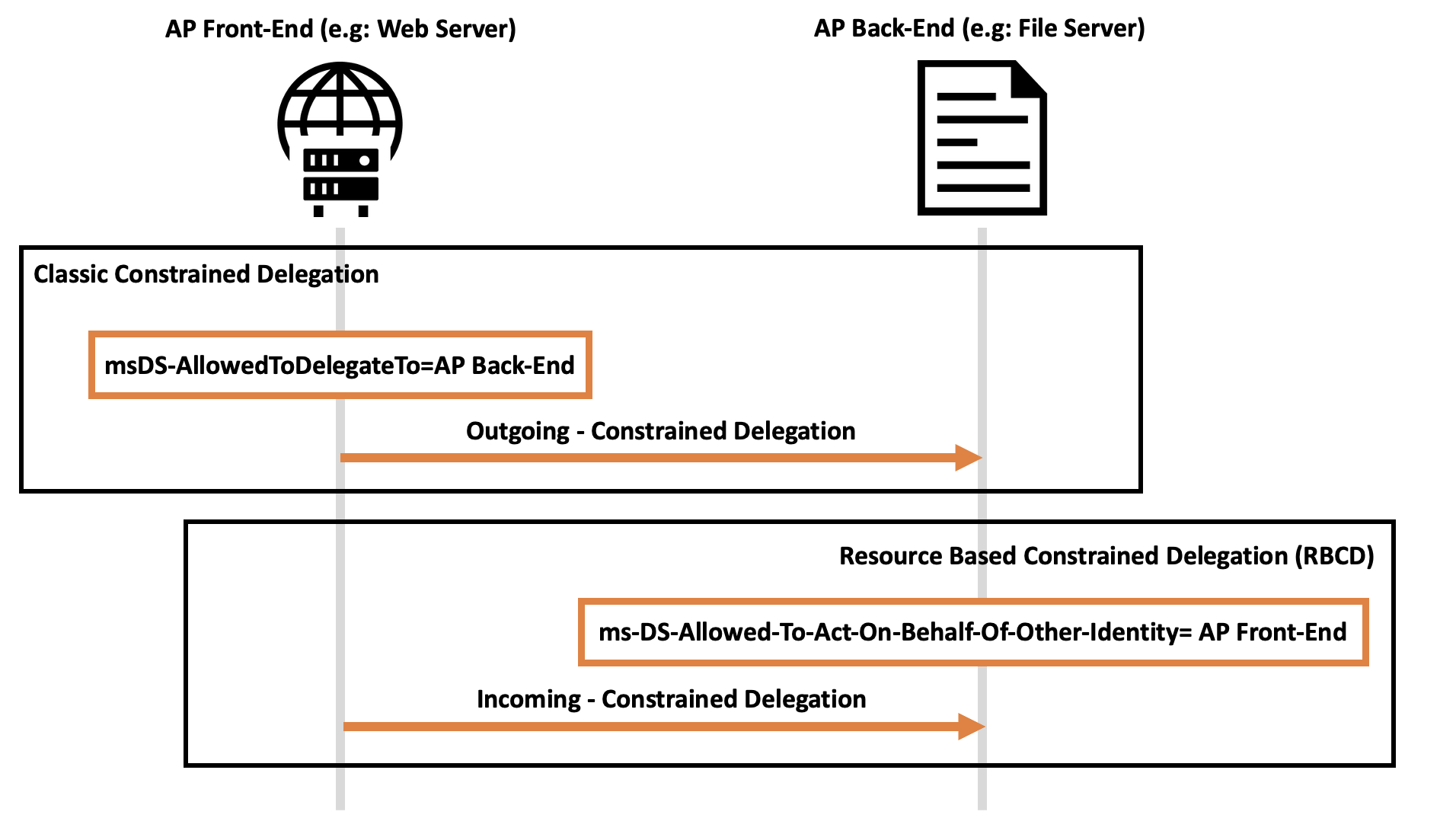

Below there is a diagram showing how the Constrained Delegation works:

It is possible to configure Constrained Delegation on the AP Front End in 2 different modes:

• Trust this computer for delegation to specified service only (Kerberos only): The AP Front End is able to impersonate the Client only if the Client logs into it via Kerberos (it uses the S4U2Proxy extension);this scenario is also called “Kerberos Only”.

• Trust this computer for delegation to specified service only (Use any authentication protocol): The AP Front End is able to impersonate the Client if the Client logs into it with any type of protocol, such as NTLM (it uses the S4U2Self & S4U2Proxy extensions); this scenario is also called “Protocol Transition”.

To analyze with Wireshark ALL the flows that occur during this Constrained Delegation I would have had to create from scratch a lab composed of a Front End Service that accepts a Kerberos authentication and develop within it a logic that triggers an additional Kerberos authentication towards the Back-End Server, since I did not find a quick method on how to do this, the screenshots you will see in this section come from this awesome guide.

Constrained Delegation (Kerberos only)

The KDC, in order to use the “Constrained Delegation (Kerberos only)”, requires 2 prerequisites:

1. Configure the “Constrained Delegation (Kerberos only)” on the “Front-End” AP.

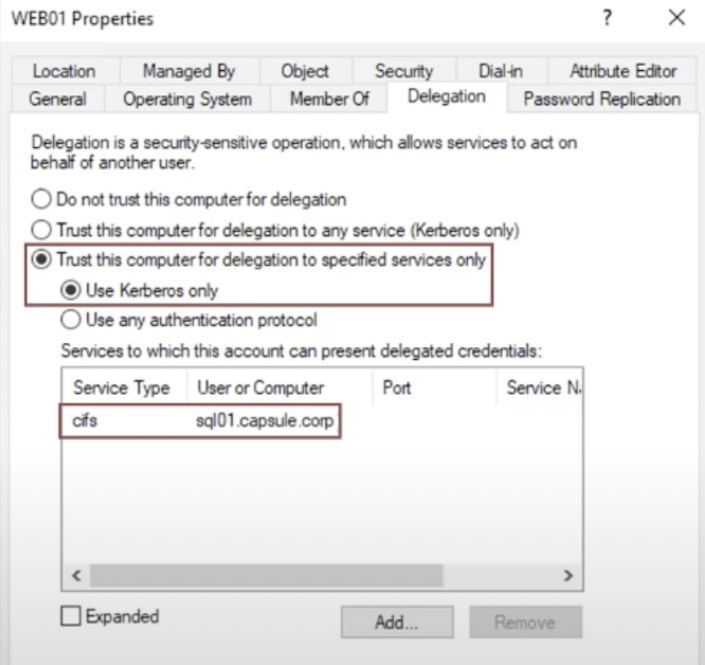

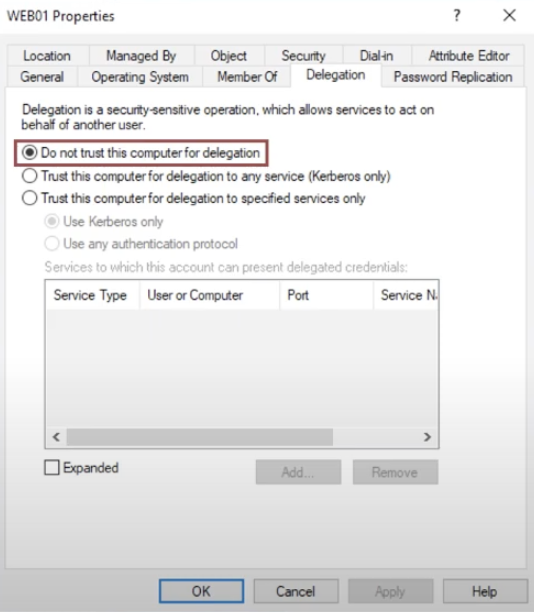

The “Constrained Delegation (Kerberos only)” is configured via ADUC by enabling the property “Trust this computer for delegation to specified service only (Kerberos only)” on the “Computer” object that acts as the “Front-End” AP; since this configuration is potentially dangerous, such action can only be performed by a Domain Admin account or an account with the “SeEnableDelegationPrivilege” permission.

In reality, even an object of type “user” (domain account) can be configured with the Kerberos Constrained Delegation (Kerberos only), in this way such domain account will be able to impersonate another domain account to authenticate against target APs (services), however, to do this it is necessary that such account has at least 1 SPN configured, in fact only in this specific case the “Delegation” tab will appear inside the property of the user object; specifically, the “Kerberos Only” flow described later will remain unchanged with the only difference that when referring to the Service Account “Computer Account,” the Service Account “User” will be used instead.

Furthermore, it is mandatory to fill the section indicated just below; with it, the domain administrator is able to restrict (a.k.a constrain) which Back-End APs the Front-End AP can authenticate on behalf of the Client.

This configuration sets in the UserAccountControl property of the AP “Front End” object the flag “msds-allowedtodelegateto”, which contains in the form of SPNs all the “Back End” APs for which the “Front End” AP has permission to authenticate on behalf of the Client.

In our example, the Kerberos Delegation is configured on the Computer “WEB01” which will act as the Front-End AP, this modification is actually reflected on the related Computer Account since it is contained in the “Computer” object, so the Computer Account “WEB01$” will have the “msds-allowedtodelegateto” property filled, this means that any service started by this computer with the Service Account WEB01$ (Computer Account) will have “Kerberos Constrained Delegation (Kerberos Only)” enabled (so, all services started with the Local Service account such as by default the CIFS service or HTTP like in this example).

In conclusion, all services started with the WEB01$ user, such as in this case the HTTP service (AP Front End), will have “Constrained Delegation (Kerberos only)” enabled; so, in this scenario, they will be able to authenticate on behalf of the Client exclusively on the CIFS service of the SQL01 computer (AP Back-End).

2. Configure the domain user that performs Kerberos authentication to the “Front-End” AP as “relayable”.

It is necessary that the domain user that performs Kerberos authentication to the “Front-End” AP does NOT have the “NOT_DELEGATED” flag set to “TRUE” / “1” in the “UserAccountControl” property; if it is, then that user is NOT delegable, by default ALL domain users do NOT have this flag enabled and are therefore relayable.

---

Below we see the flow of a Kerberos authentication with “Constrained Delegation (Kerberos only)” enabled:

The “KRB_AP_REP” packet ("AP Front-End" -> “Client”) & “AP Back-End” -> “AP Front End”) required by the Mutual Authentication could be sent in different times based on the Windows computer version used inside the infrastructure, with this flow i choose to put down the most common scenario.

Integrity and authenticity verification operations that occur within traditional Kerberos authentication (sending & analyzing the “Authenticator” along with the related “Session Key” used to encrypt & decrypt parts of the packet) are also present with Unconstrained Delegation enabled, but in this case they will NOT be mentioned, because they have already been generally described previously (for a complete analysis in the context of Unconstrained Delegation see this guide) and because it was preferred to instead emphasize the unique characteristics of Kerberos Unconstrained Delegation.

As already mentioned previously, below we will describe the traditional process where Kerberos with Unconstrained Delegation enabled is used, that is, from an Interactive Logon where a user enters their credentials within a WinLOGON GUI, and then subsequently uses Kerberos again in a Network Logon (roughly using cached credentials) to authenticate to a target service with Kerberos Unconstrained Delegation enabled; that said, in reality, the authentication process can also start in other types of authentications besides the traditional WinLOGON GUI (Interactive Logon).

---

Introduction: Initially, the Client (after the domain user has entered their credentials for an Interactive Logon) makes a request for a TGT Ticket & TGS Session Key (KRB_AS_REQ) to the KDC and it responds (KRB_AS_REP) providing the requested data (if positive, in summary, the Client grants access to the domain user).

1. KRB_TGS_REQ: The Client provides its TGT Ticket to the KDC to request the TGS Ticket.

Now that a domain user has already authenticated to a Client (using Kerberos) and already holds the TGT Ticket with a TGS Session Key, if there is a need to perform a “Network Logon” login, the Kerberos protocol comes into play again, specifically the Client will use the TGT Ticket and the TGS Session Key to request another type of ticket called the TGS Ticket.

The Client presents to the KDC (no longer to the AS functionality) a KRB_TGS_REQ which in summary contains:

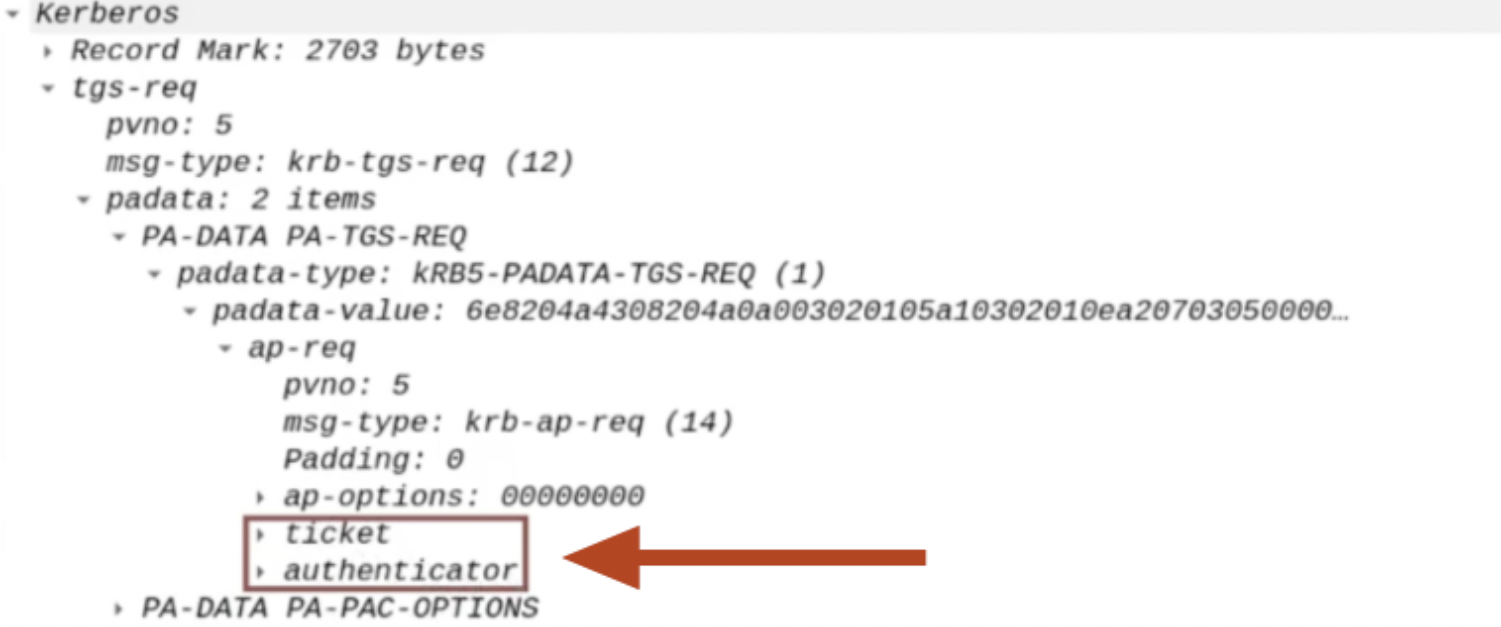

• The Client shares its previously received TGT Ticket (to exchange it for a TGS Ticket)

• SPN: The SPN related to / pointing to the service that the Client needs to connect to via SSO is sent in plain text, in this case it refers to the AP Front-End, such as the SPN “HTTP/WEB01”, that is, a request for authentication to the HTTP service present on the hostname “WEB01” is made.

2. KRB_TGS_REP: The KDC sends the TGS Ticket to the Client.

The KDC receives the KRB_TGS_REQ packet and, after performing the usual checks, sends a “KRB_TGS_REP” packet containing in summary:

• The TGS Ticket for the “Front End” AP (HTTP Service hosted on “WEB01”)

3. KRB_AP_REQ: The Client attempts to access the Front-End AP by providing its TGS Ticket

After the usual checks, the Client, in summary, sends a “KRB_AP_REQ” packet to the Front-End AP (HTTP service) containing in summary:

• Ticket TGS: Its own TGS Ticket (previously received)

4. KRB_AP_REP (Optional): The AP Front End (HTTP) will allow the Client access to the requested service:

The AP Front End, now that it has received the KRB_AP_REQ packet, in summary, after the usual checks, will allow (if the AUTHORIZATION phase goes correctly) the Client access to the requested service (in this case the HTTP service hosted on the WEB01 computer), subsequently, depending on the requested service and if mutual authentication is required by the Client, the AP Front End will send a “KRB_AP_REP” to the Client.

In my home lab the KRB_AP_REP packet was sent in this way, in this other case, however, the KRB_AP_REP packet was delivered to the Client only at the end of the entire process.

---

If the AP Front End needs to authenticate to a Back End AP on behalf of the Client, the following actions will take place:

---

5. KRB_TGS_REQ (S4U2Proxy) / S4U2Proxy Request

Occasionally, when the AP Front End (so the HTTP service) needs to authenticate to the Back End AP (so the CIFS service) on behalf of the Client, the AP Front End will send to the KDC a “KRB_TGS_REQ (S4U2Proxy)” packet containing, in summary:

• The AP Front End shares its own TGT Ticket:

  Every computer joined in a domain, during its startup, will perform a Kerberos authentication using its corresponding Computer Account; consequently the WEB01 computer will also have stored in memory the TGT Ticket of the WEB01$ account.

  In this scenario, the AP Front End will send the TGT Ticket of its Computer Account.



• SPN of the Back-End service:

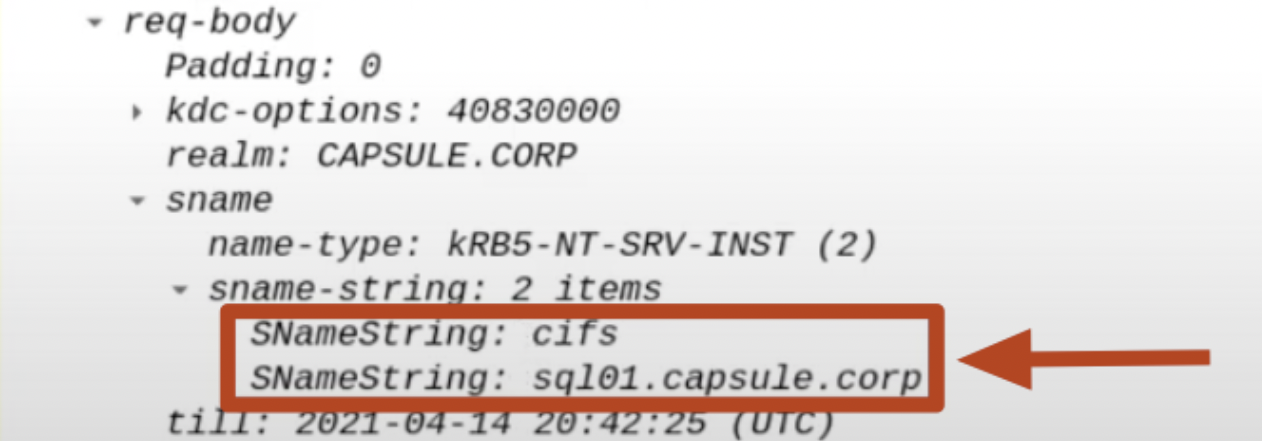

  The SPN related to / pointing to the Back-End service that the Front-End service needs to connect to on behalf of the Client is sent, in this case, it refers to the Back-End AP identified by the SPN “CIFS/SQL01”, so the CIFS service hosted on the “SQL01” computer.



• Client’s TGS Ticket:

  The TGS Ticket that the Client used to access the AP Front End (HTTP service on the WEB01 computer) will be sent.

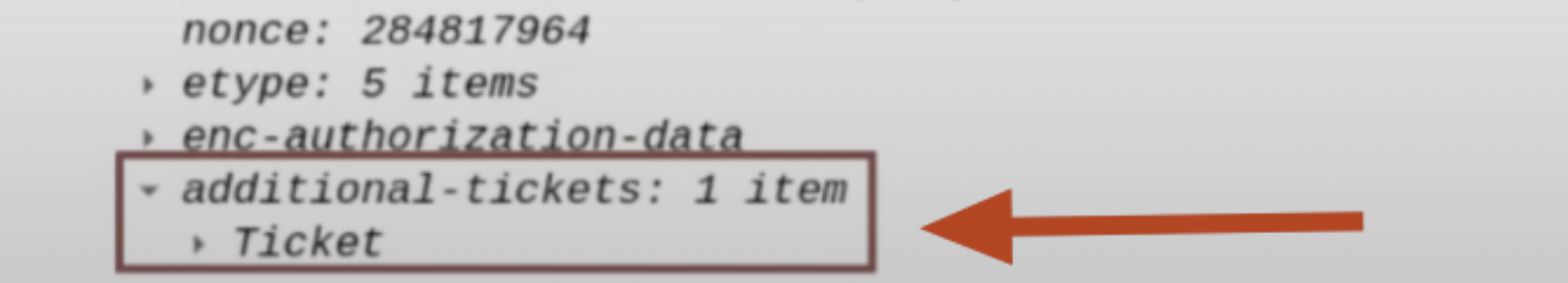

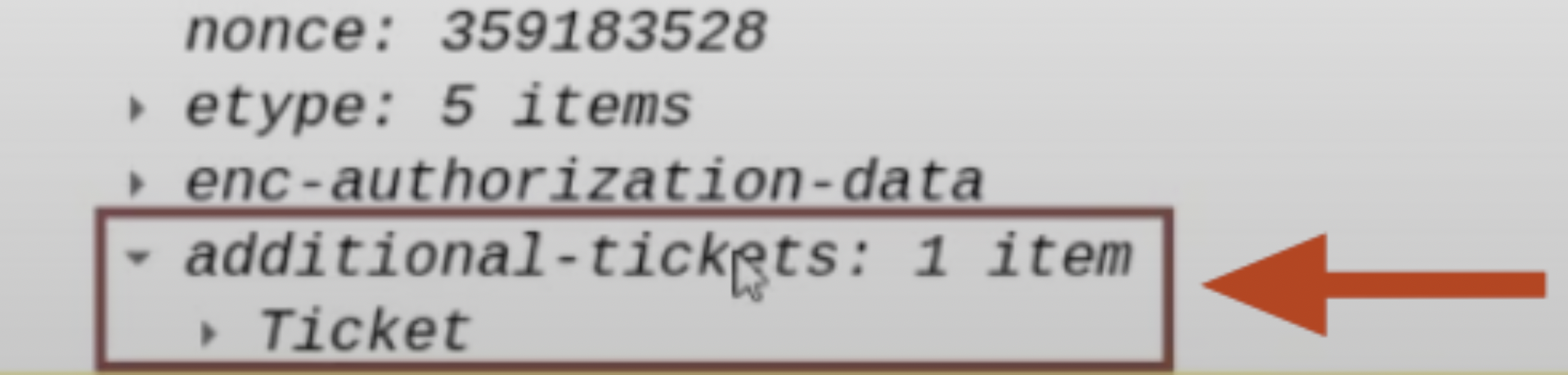

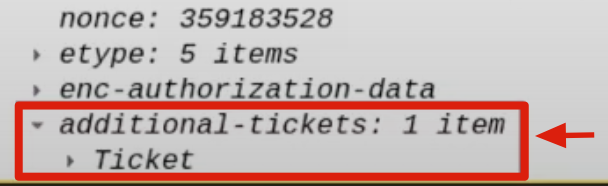

  This TGS Ticket is contained within the “Additional Ticket” field:

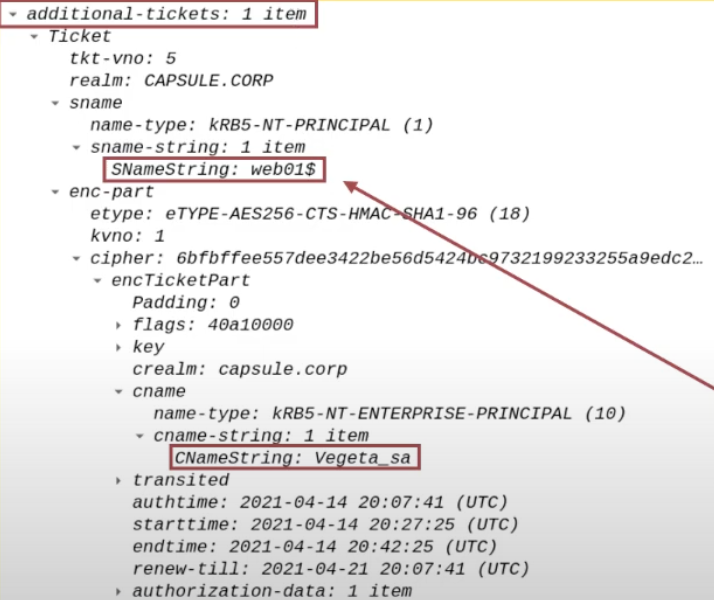

  Additionally, it should be noted that the sent TGS Ticket will have the “Forwardable” flag set to “1”; by default, all TGS Tickets have this characteristic, that said, in this scenario this flag will be interpreted and therefore it is important to specify it.

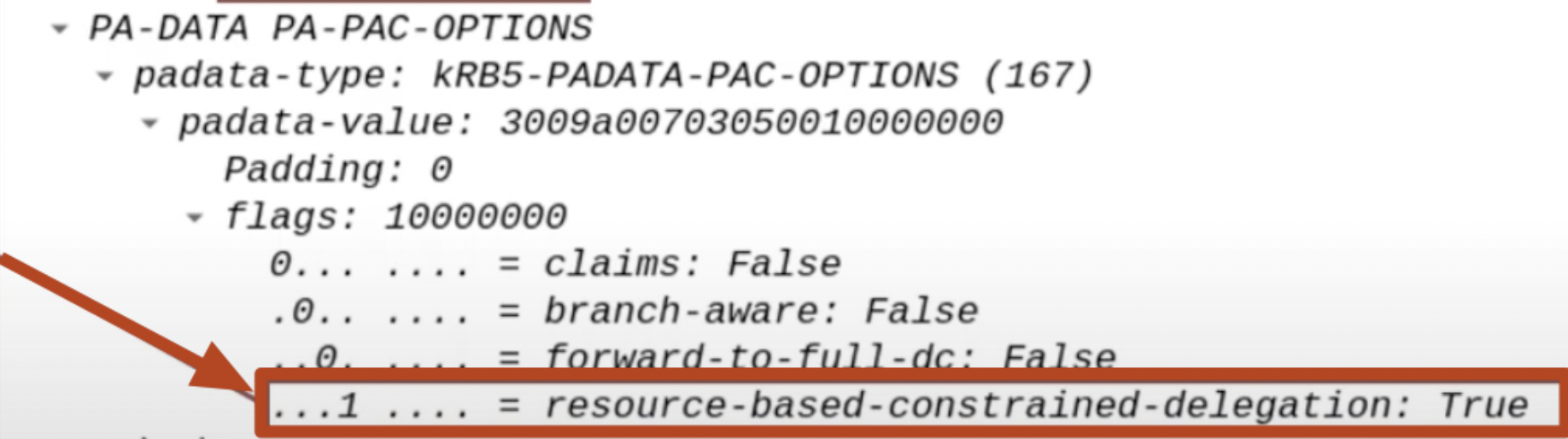

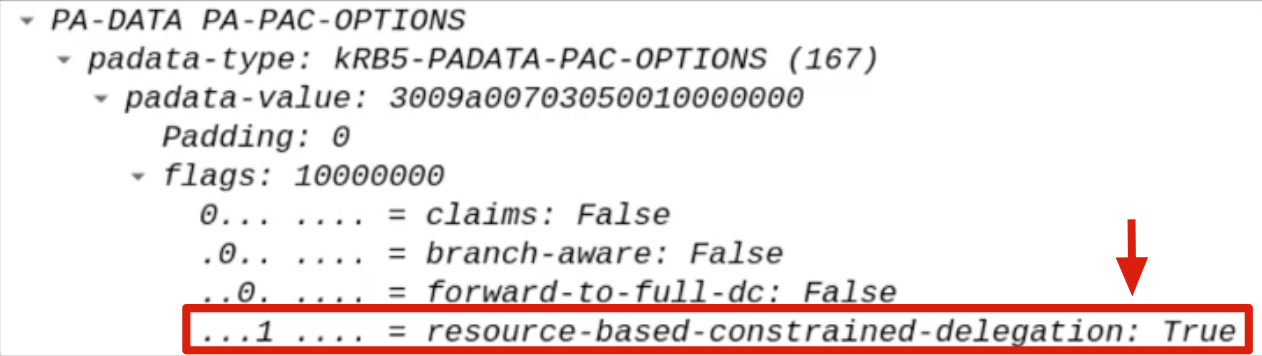

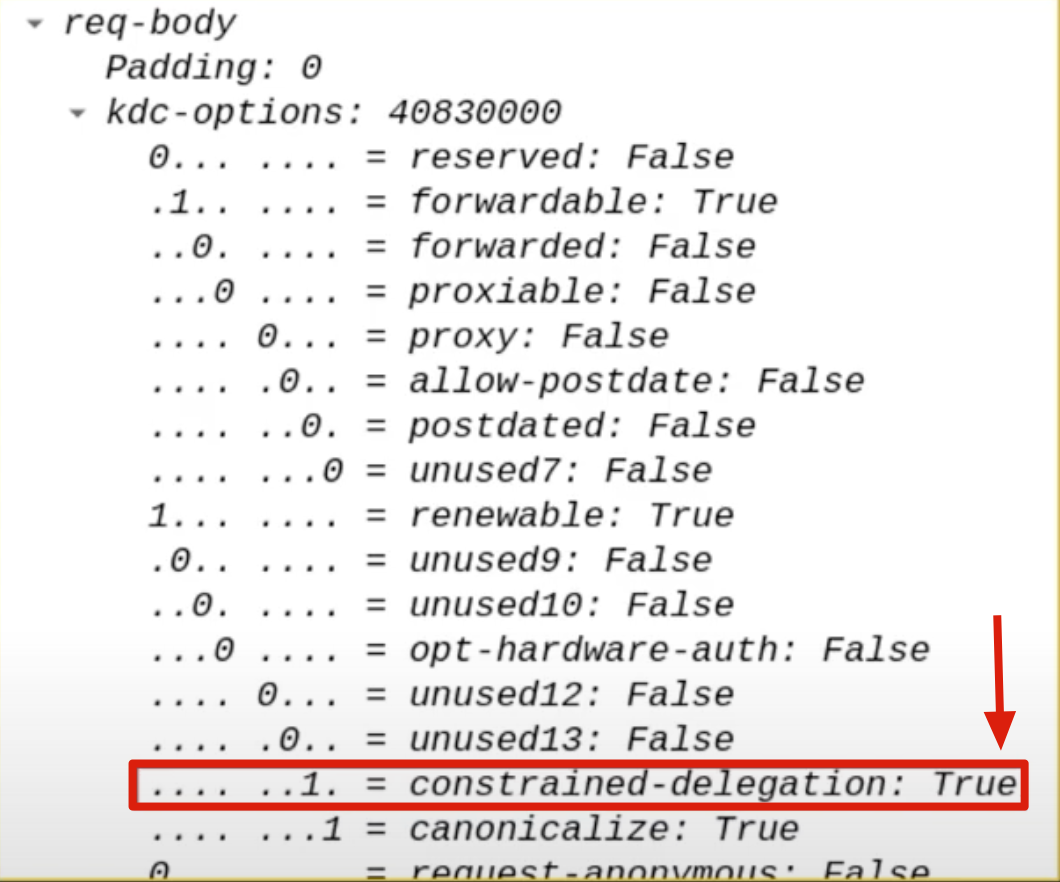

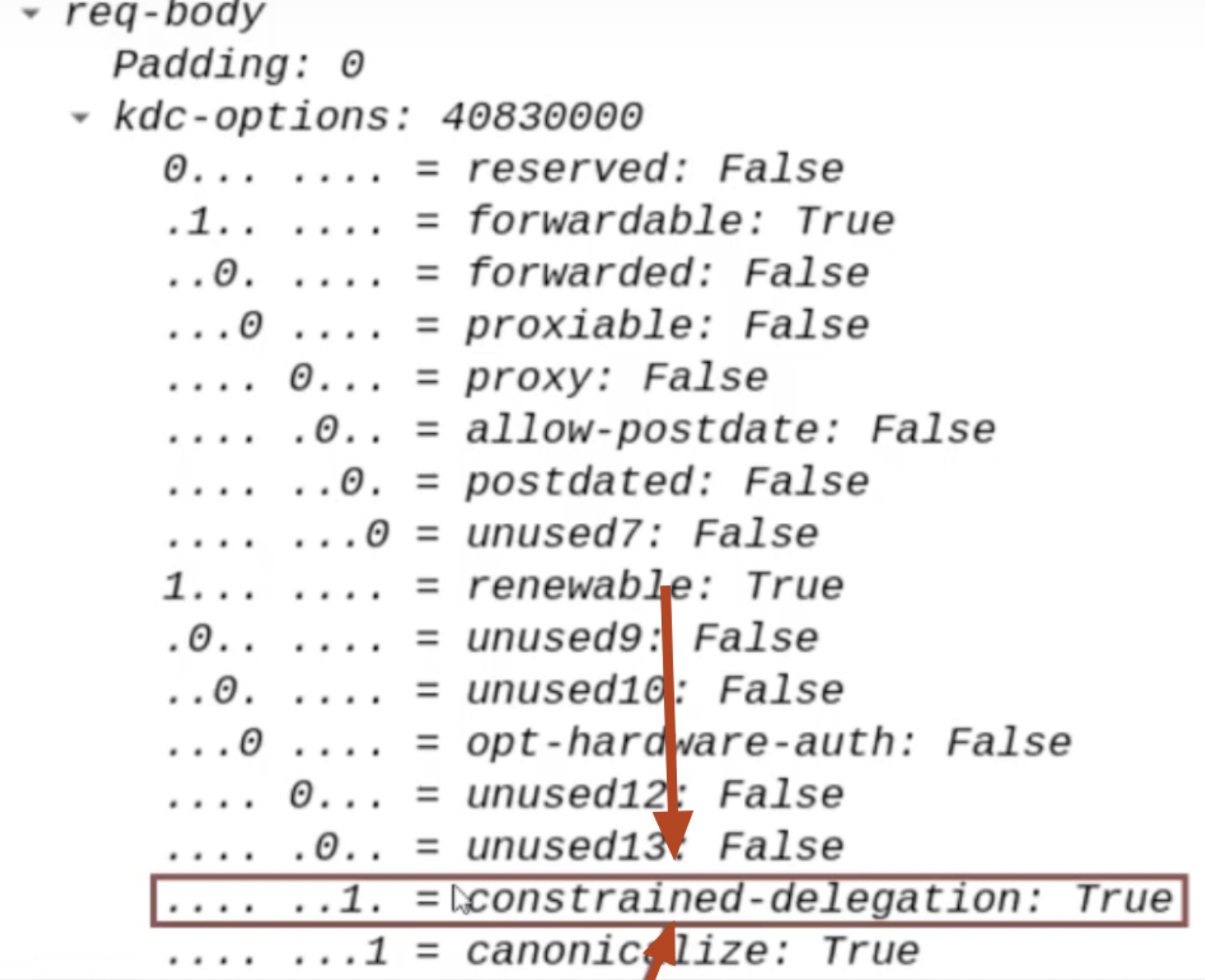

• The flags “Resource-Based Constrained-Delegation” & “Constrained-Delegation” both set to “1” / “TRUE”:

  The AP Front End, within the KRB_TGS_REQ packet, will set the flags “Resource-Based Constrained-Delegation” & “Constrained-Delegation” both to “1” / “TRUE”; this is done because in case of a FallBack, so if the “Constrained Delegation (Kerberos only)” fails, the Delegation can proceed with “Resource-Based Constrained Delegation (RBCD) flow”.




6. KRB_TGS_REP (S4U2Proxy) / S4U2Proxy Response

The KDC, after performing authenticity checks and analyzing the KRB_TGS_REQ (S4U2Proxy) packet received from the AP Front, will perform further verifications sequentially:

1. The KDC verifies if the “TGS Ticket” used by the Client to access the AP Front End (HTTP/WEB01) is inside in the received KRB_TGS_REQ (S4U2Proxy) packet, which would provide to the KDC the evidence that the Client has indeed authenticated to the AP Front End (HTTP Service on the WEB01 machine) (and therefore that the AP Front End can potentially impersonate the Client); it also checks that this TGS Ticket has the “FORWARDABLE” flag set to “1”) (positive result in this case)

As detailed by Microsoft’s wiki, if the TGS Ticket does NOT have the “FORWARDABLE” flag set & if the RBDC flag was NOT configured in the KRB_TGS_REQ (S4U2Proxy), then the KDC would respond with an error (KRB_ERRBADOPTION); instead, if the RBDC flag is set (by default it is), the KDC will attempt to use RBCD Delegation.

In the typical scenario, like the used in our example, the TGS Ticket sent in the KRB_TGS_REQ (S4U2Proxy) will always have the FORWARDABLE flag TRUE, because it was received by a traditionally “KRB_TGS_REP”, consequently Kerberos Constrained Delegation (Kerberos Only) practically NEVER fails and so the fallback case where “Resource Based Constrained Delegation (RBCD”) would be used is extremely rare.

2. The KDC, inspecting the SPN contained in the KRB_TGS_REQ (S4U2Proxy) packet, will understand that the AP Front End (ex HTTP/WEB01) intends to authenticate to a specific AP Back-End (ex CIFS/SQL01) on behalf of the Client; consequently, the KDC retrieves the Service Account of the AP Front End (WEB01$) and checks if the SPN of the requested AP Back End (in this case CIFS/SQL01) is present in its “msds-allowedtodelegateto” property (positive result in this case)

If both verifications are positive, as in our case, then the KDC sends a KRB_TGS_REP (S4U2Proxy) packet to the AP Front End containing, in summary:

• A TGS Ticket of the Client to access the AP Back-End:

  The KDC then sends within a “KRB_TGS_REP (S4U2Proxy)” a TGS Ticket belonging to the Client (containing the PAC of the domain user who authenticated to the AP Front End - inside the image, in the field dedicated to the user name i just wrote a placeholder to avoid a screenshot madness) valid for the AP Back-End (CIFS/SQL01)

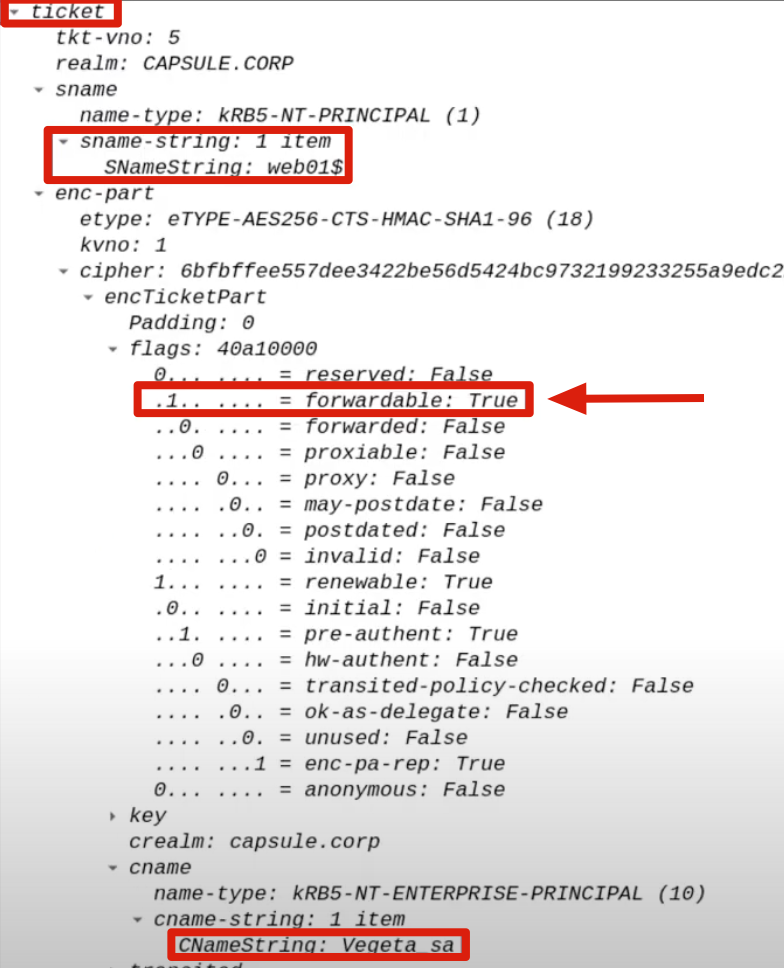

  Furthermore, i want to highlight that the TGS Ticket sent will have the “Forwardable” flag set to “1”, by default this characteristic is present in ALL TGS Tickets; that said, in this scenario the flag will be interpreted and therefore it is important to clarify.



7. KRB_AP_REQ:

The AP Front End (HTTP service), after the usual checks, in summary, sends a “KRB_AP_REQ” packet to the AP Back-End (CIFS service) containing, in summary:

• The previously received TGS Ticket: The previously received TGS Ticket, that is, the one belonging to the Client (containing the PAC of the domain user who authenticated to the AP Front End) and valid for the AP Back-End (CIFS/SQL01).

8. KRB_AP_REP (Optional)

The AP Back-End, now having received the KRB_AP_REQ packet from the AP Front-End, in summary, after the usual checks (if the AUTHORIZATION phase goes correctly, will allow access by the AP Front End to the requested service (in this case the CIFS service hosted on the SQL01 machine); subsequently, depending on the requested service and if mutual authentication is required by the AP Front End (ex HTTP service), the AP Back-End (ex CIFS service) will send a KRB_AP_REP to the AP Front End (ex HTTP service).

This is what happens in my home lab; in this case, however, the “KRB_AP_REP” packet is sent first by the AP Back-End to the AP Front-End and then (as already told) another “KRB_AP_REP” is sent from the AP Front End to the Client.

Finaly the AP Front-End has successfully authenticated to the AP Back-End on behalf of the Client.

Constrained Delegation (Use any authentication Protocol) / Protocol Transition

In a “Constrained Delegation (Kerberos Only)” the AP Front End (ex HTTP) can use the S4U2Proxy extension to obtain from the KDC the Client’s TGS Ticket (ex MARVEL\pparker) to access the AP Back End (ex CIFS); to do this, the AP Front End (ex HTTP) must share the TGS Ticket that the Client (ex MARVEL\pparker) used to authenticate to it, that said, if the AP Front End (ex HTTP) does NOT have such TGS Ticket because the Client authenticated using, for example, NTLM or Basic authentication, this method cannot be used, and for this reason the “S4USelf” extension was created.

In this scenario the AP Front End (ex HTTP) can invoke the S4U2Self extension, in other words, it requests from the KDC a TGS Ticket of a specific Client (ex MARVEL\pparker) valid exclusively for itself (ex HTTP), this can then be used by the AP Front End as “evidence” to subsequently invoke the S4U2Proxy extension; this scenario is called “Constrained Delegation (Use any authentication protocol)”.

The KDC, in order to use the “Constrained Delegation (Kerberos only)”, requires 2 prerequisites:

1. Configure the “Constrained Delegation (Use any authentication protocol)” on the “Front-End” AP.

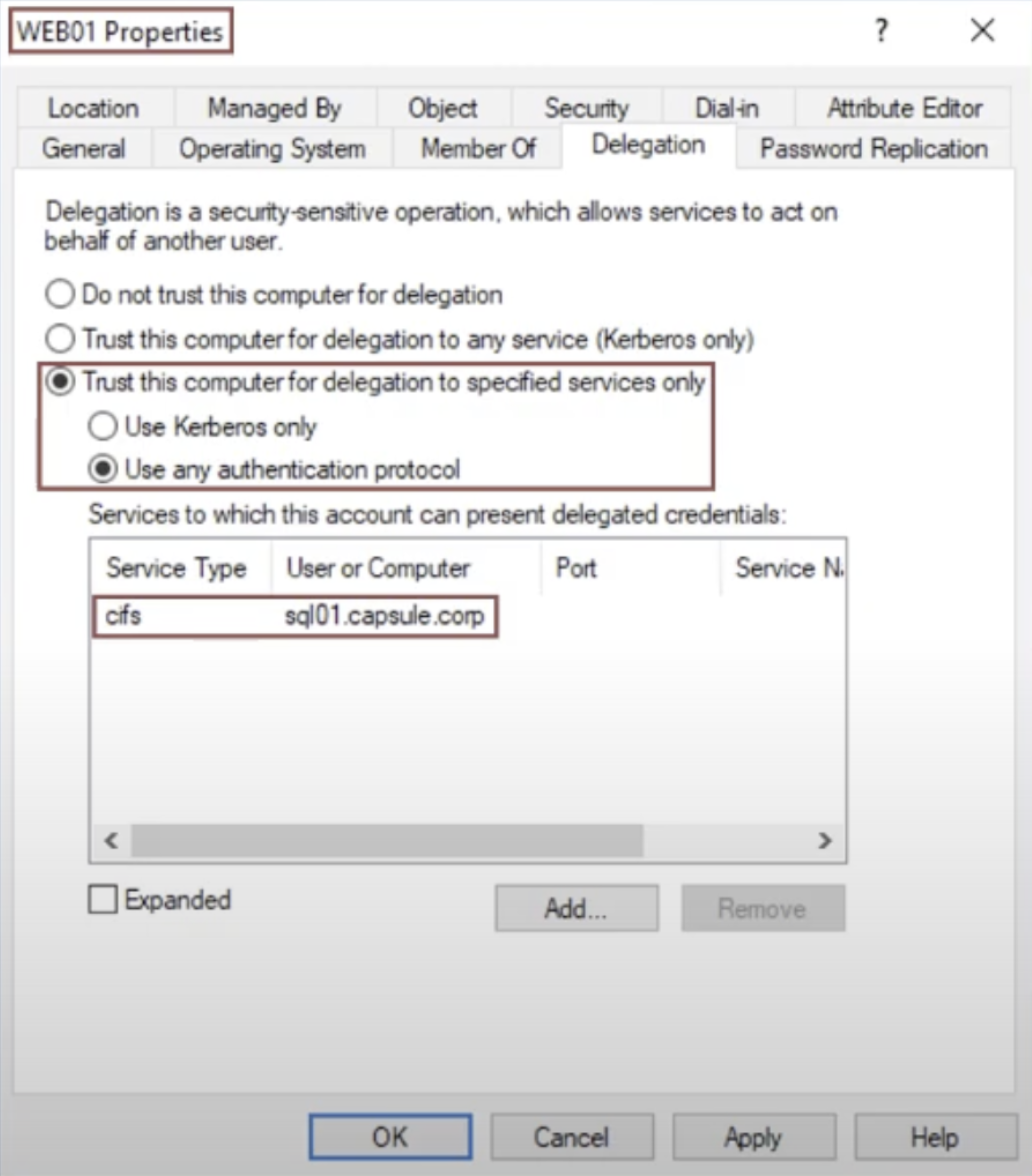

The “Constrained Delegation (Use any authentication protocol)” is configured via ADUC by enabling the property “Trust this computer for delegation to specified service only (Use any authentication protocol)” on the “Computer” object that acts as the “Front-End” AP; since this configuration is potentially dangerous, such action can only be performed by a Domain Admin account or an account with the “SeEnableDelegationPrivilege” permission.

In reality, even an object of type “user” (domain account) can be configured with the “Constrained Delegation (Use any authentication protocol)”, in this way such domain account will be able to impersonate another domain account to authenticate against target APs (services), however, to do this it is necessary that such account has at least 1 SPN configured, in fact only in this specific case the “Delegation” tab will appear inside the property of the user object; specifically, the “Kerberos Only” flow described later will remain unchanged with the only difference that when referring to the Service Account “Computer Account,” the Service Account “User” will be used instead.

Furthermore, it is mandatory to fill the section indicated just below; with it, the domain administrator is able to restrict (a.k.a constrain) which Back-End APs the Front-End AP can authenticate on behalf of the Client.

This configuration sets in the UserAccountControl property of the AP “Front End” object:

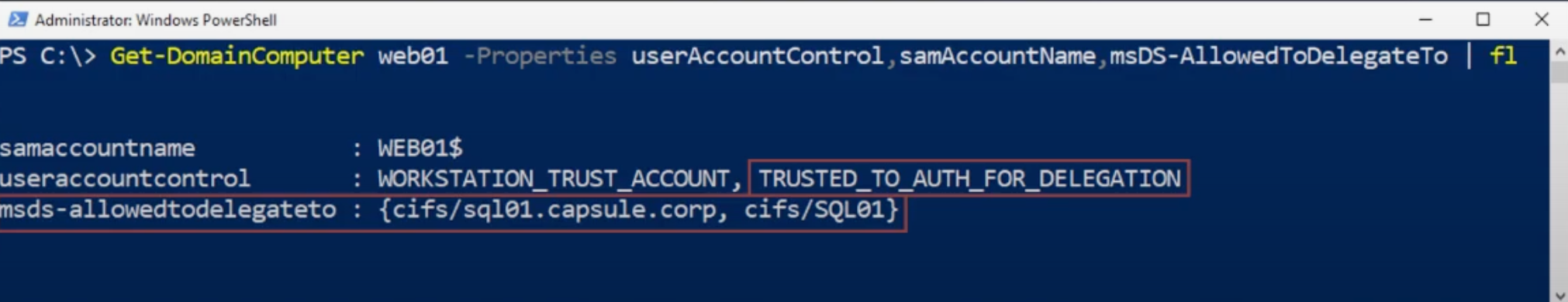

• The “TRUSTED_TO_AUTH_FOR_DELEGATION” flag (it is different from TRUSTED_FOR_DELEGATION of Unconstrained Delegation)

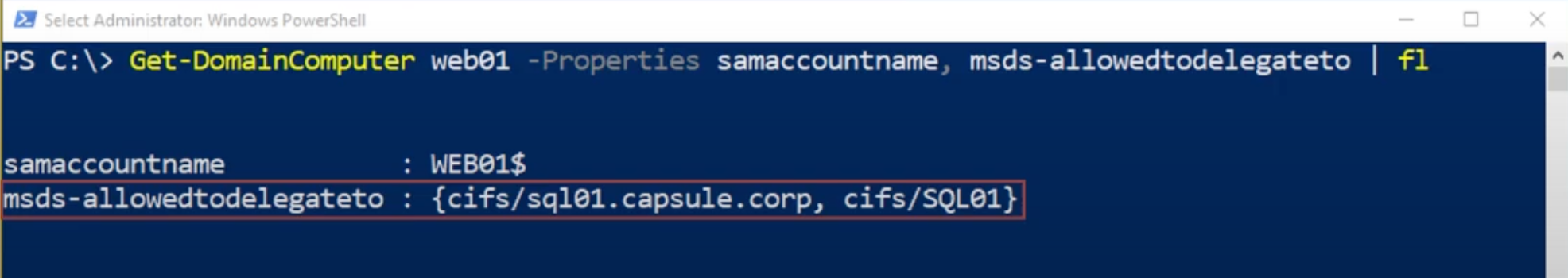

• The “msds-allowedtodelegateto” flag, which contains in the form of SPNs all the AP “Back End” services to which the AP “Front End” is allowed to authenticate on behalf of the Client;

In our example, the Kerberos Delegation is configured on the Computer “WEB01” which will act as the Front-End AP, this modification is actually reflected on the related Computer Account since it is contained in the “Computer” object, so the Computer Account “WEB01$” will have the “msds-allowedtodelegateto” & “TRUSTED_TO_AUTH_FOR_DELEGATION” property filled, this means that any service started by this computer with the Service Account WEB01$ (Computer Account) will have “Constrained Delegation (Use any authentication protocol)” enabled (so, all services started with the Local Service account such as by default the CIFS service or HTTP like in this example).

In conclusion, all services started with the WEB01$ user, such as in this case the HTTP service (AP Front End), will have “Constrained Delegation (Use any authentication protocol)” enabled; so, in this scenario, they will be able to authenticate on behalf of the Client exclusively on the CIFS service of the SQL01 computer (AP Back-End).

2. Configure the domain user that performs Kerberos authentication to the “Front-End” AP as “relayable”.

It is necessary that the domain user that performs Kerberos authentication to the “Front-End” AP does NOT have the “NOT_DELEGATED” flag set to “TRUE” / “1” in the “UserAccountControl” property; if it is, then that user is NOT delegable, by default ALL domain users do NOT have this flag enabled and are therefore relayable.

---

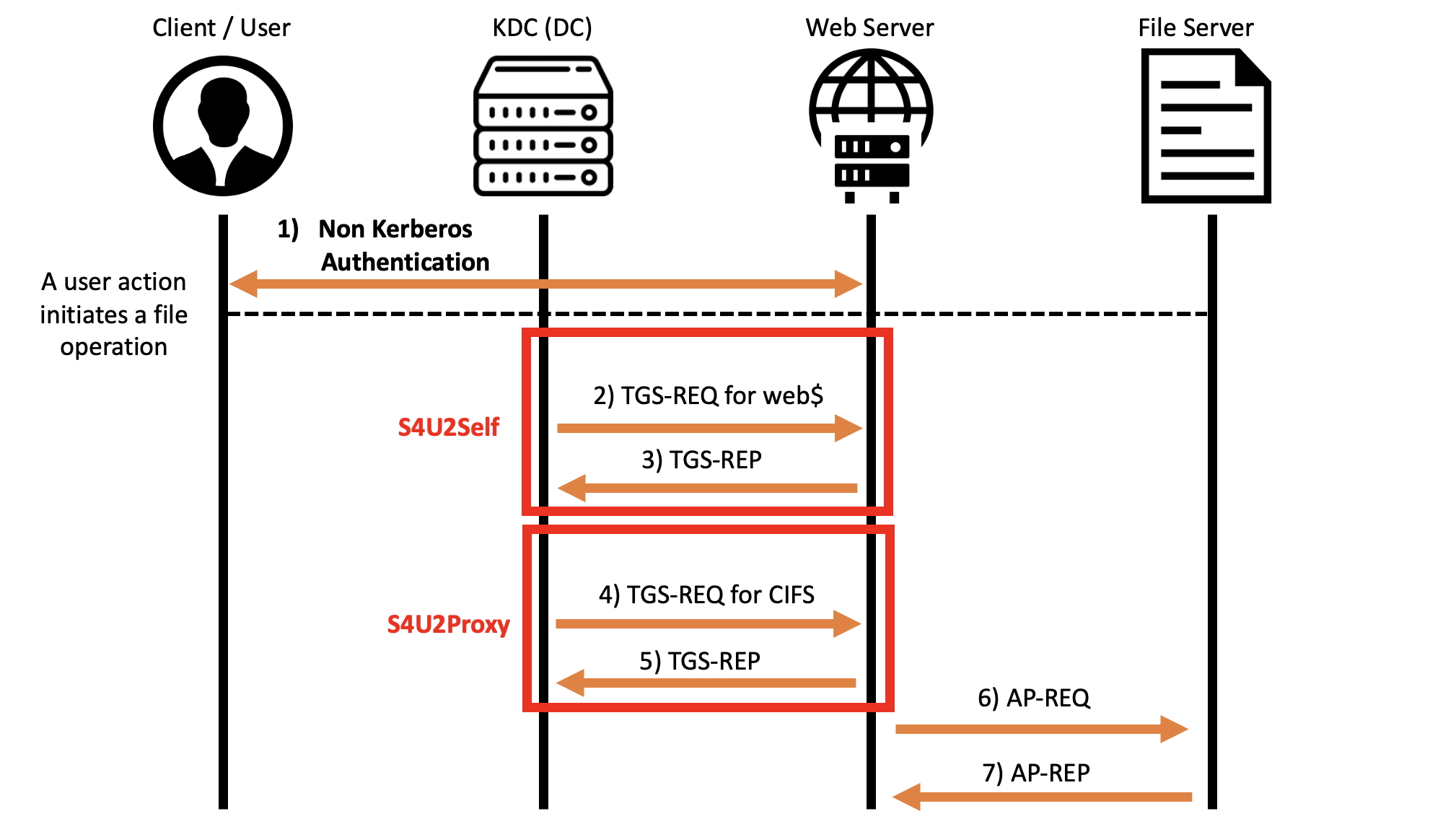

Below we see the flow of a Kerberos authentication with Constrained Delegation (Use any authentication protocol) enabled:

The “KRB_AP_REP” packet (“AP Front-End” -> “Client” & “AP Back-End” -> “AP Front End”) required by the Mutual Authentication could be sent in different times based on the Windows machine version used inside the infrastructure, this is the reason why i have not putted them on the image.

Integrity and authenticity verification operations that occur within traditional Kerberos authentication (sending & analyzing the “Authenticator” along with the related “Session Key” used to encrypt & decrypt parts of the packet) are also present with Unconstrained Delegation enabled, but in this case they will NOT be mentioned, because they have already been generally described previously (for a complete analysis in the context of Unconstrained Delegation see this guide) and because it was preferred to instead emphasize the unique characteristics of Kerberos Unconstrained Delegation.

As already mentioned previously, below we will describe the traditional process where Kerberos with Unconstrained Delegation enabled is used, that is, from an Interactive Logon where a user enters their credentials within a WinLOGON GUI, and then subsequently uses Kerberos again in a Network Logon (roughly using cached credentials) to authenticate to a target service with Kerberos Unconstrained Delegation enabled; that said, in reality, the authentication process can also start in other types of authentications besides the traditional WinLOGON GUI (Interactive Logon).

---

1. Client authenticates to an AP Front End NOT using Kerberos.

A domain user authenticates to an AP Front End NOT using the Kerberos protocol (NTLM, Basic, etc).

If the AP Front End needs to authenticate to an AP Back End on behalf of the Client, the following actions will take place:

2. KRB_TGS_REQ (S4U2Self) / S4U2Self Request.

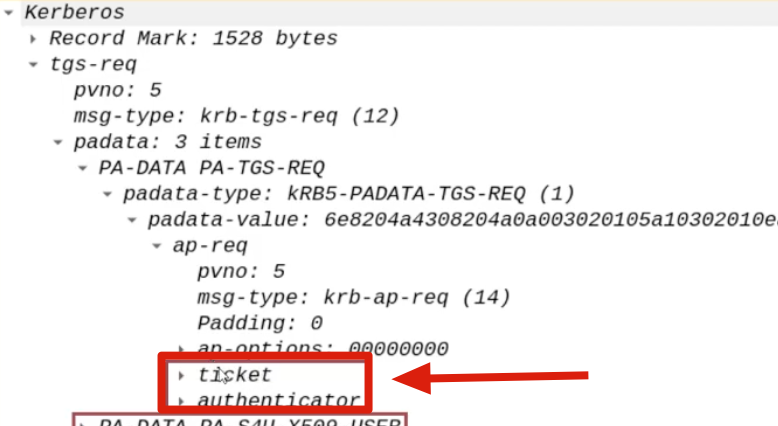

Occasionally, when the AP Front End (ex HTTP service) needs to authenticate to the AP Back End (ex CIFS service) on behalf of the Client (ex CAPSULE.corp\vegeta), since the Client (ex CAPSULE.corp\vegeta) authenticated using, for example, the NTLM protocol, the AP Front End will NOT have the Client’s TGS Ticket and therefore will NOT be able to invoke S4U2Proxy as in the Constrained Delegation (Kerberos Only) scenario, consequently the AP Front End will use the “S4U2Self” extension, so it will send to the KDC a “KRB_TGS_REQ” packet containing, in summary:

The S4U2Self extension, in summary, is used to obtain a TGS Ticket belonging to a specific Client (e.g., CAPSULE.corp\vegeta) valid only for the service itself, so for the AP Front End (e.g., HTTP).

• The AP Front End shares its own TGT Ticket

  Every computer joined in a domain, during its startup, will perform a Kerberos authentication using its corresponding Computer Account; consequently the WEB01 computer will also have stored in memory the TGT Ticket of the WEB01$ account.

  In this scenario the AP Front End will send the TGT Ticket of its Computer Account.

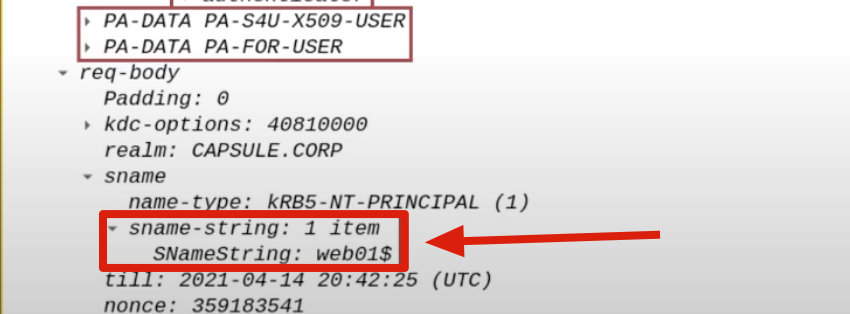

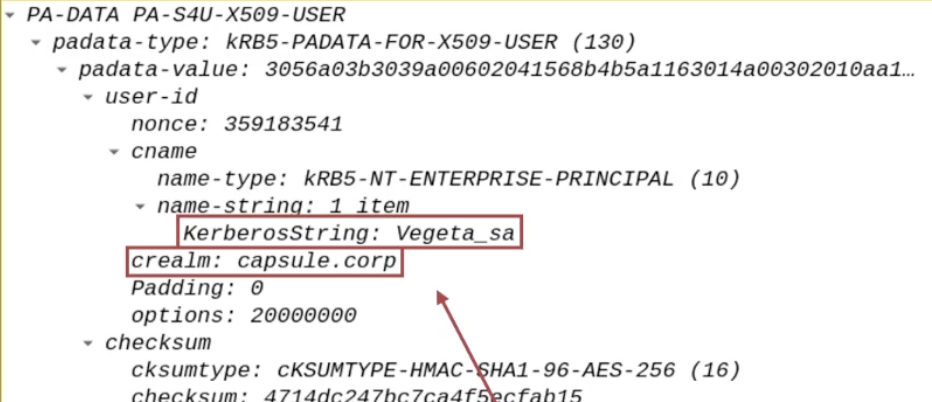

• SPN containing the Service Account of the AP Front End (WEB01$)

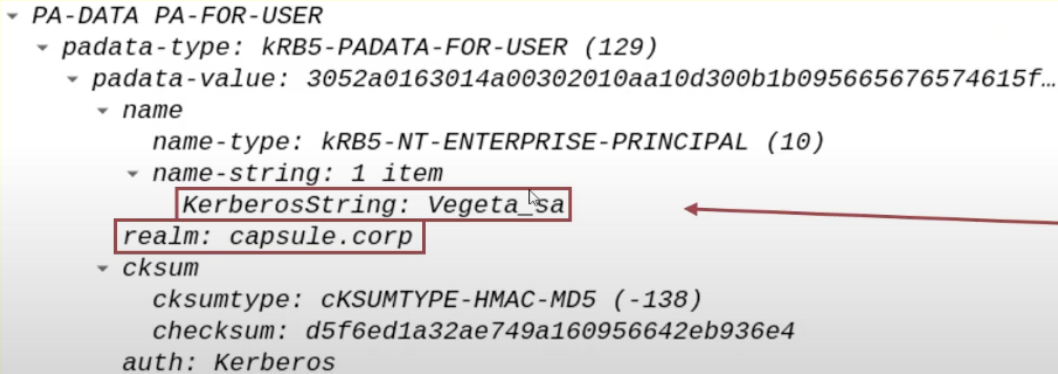

  The SPN field can accept different valid types of data including also the insertion of the Service Account instead of an SPN, in this case the Service Account of the AP Front End will be specified (for example HTTP), in this way the TGS Ticket issued will be valid for the AP Front End, so for itself; in this case it is the Computer Account WEB01$.



• The name of the domain user that the AP Front End wants to impersonate (e.g., CAPSULE.corp\vegeta).

  The AP Front End needs to have a TGS Ticket valid for itself that belongs to the Client (e.g., CAPSULE.corp\vegeta), consequently the AP Front End will specify the name of the domain user it wants to impersonate, so the user who has connected to the AP Front End (e.g., CAPSULE.corp\vegeta):

  This data is inserted in both the “PA-S4U-X509-USER” & “PA-FOR-USER” structures (data structures added into Kerberos packet through the S4UProxy extension).




  In this way the TGS Ticket valid for the AP Front End will belong to the user specified here, so in this case to CAPSULE.corp\vegeta.

  By analyzing the packet on my home lab through S4U Request with Rubeus I do NOT find the “PA-S4U-X509-USER” data structure BUT I do find “PA-FOR-USER”.

3. KRB_TGS_REP (S4U2Self) / S4U2Self Response.

After performing the usual checks, the KDC retrieves from the KRB_TGS_REQ (S4U2Self) packet the Service Account contained in the SPN field (e.g., WEB01$), then it will verify if this Service Account has the “TRUSTED_TO_AUTH_FOR_DELEGATION” property enabled, if as in this case the result is positive it will mean that the related service (e.g., HTTP) has the “Constrained Delegation (Use any authentication protocol)” enabled, consequently the KDC sends a KRB_TGS_REP (S4U2Self) packet to the AP Front End containing in summary:

• A TGS Ticket of the Client (e.g., CAPSULE.corp\vegeta) to access the AP Front End (HTTP)

  The KDC therefore sends within a “KRB_TGS_REP (S4U2Self)” a TGS Ticket belonging to the Client (it contains the PAC of the domain user who authenticated via NTLM or Basic to the Front End service, in this case CAPSULE.corp\vegeta) valid specifically for the AP Front End (HTTP).

  In this specific case, since the requested service was identified through the SPN field with the Service Account, the corresponding TGS ticket generated will contain the Service Account within the SPN field.



  Furthermore, i want to highlight that the TGS Ticket sent will have the “Forwardable” flag set to “1”, by default all TGS Tickets have this characteristic, that said in this scenario such flag will be interpreted and therefore it is important to highlight it.



  This TGS Ticket belonging to the Client (e.g., CAPSULE.corp\vegeta) valid for the AP Front End (e.g., HTTP) will be used exclusively by the AP Front End as “evidence” to subsequently invoke the S4U2Proxy extension.

  A note related to RBCD that we’ll analyze later: I want to highlight that if the Service Account specified in the SPN (WEB01$) does NOT have the “TRUSTED_TO_AUTH_FOR_DELEGATION” flag enabled, then the KDC would still respond by sending a TGS Ticket belonging to the Client (vegeta) valid for the AP Front End (HTTP) BUT it would NOT have the “forwardable” flag set to “1”.

POST 2021:

A note related to RBCD that we’ll analyze later: As previusly said, in POST 2021 scenario if the Service Account specified in the SPN (WEB01$) does NOT have the “TRUSTED_TO_AUTH_FOR_DELEGATION” flag enabled the KDC will still issue a TGS Ticket with the FORWARDABLE flag set to 1.

4. KRB_TGS_REQ (S4U2Proxy) / S4U2Proxy Request

Now that the AP Front End has a TGS Ticket to use as “evidence” to prove that the Client (ex CAPSULE.corp\vegeta) has authenticated to it (HTTP) (even though in reality it authenticated NOT using Kerberos) it can invoke a traditional “S4UProxy”, so, as previously seen, the AP Front End will send to the KDC a “KRB_TGS_REQ (S4U2Proxy)” packet containing, in summary:

• The AP Front End shares its own TGT Ticket

  Every computer joined in a domain, during its startup, will perform a Kerberos authentication using its corresponding Computer Account; consequently the WEB01 computer will also have stored in memory the TGT Ticket of the WEB01$ account.

  In this scenario the AP Front End will send the TGT Ticket of its Computer Account.



• SPN of the Back-End service

  The SPN related to / pointing to the Back-End service that the Front-End service needs to connect to on behalf of the Client is sent in plain-text, in this case it refers to the AP Back-End identified by the SPN “CIFS/SQL01”, that is, the CIFS service present on the “SQL01” machine.



• Client’s TGS Ticket (obtained via S4U2Self)

  The TGS Ticket that the AP Front End previously received from the KDC using the “S4USelf” extension will be sent; it’s the evidence that the Client (ex CAPSULE.corp\vegeta) has successfully accessed the AP Front End (HTTP service on the WEB01 machine) (and that therefore the AP Front End can potentially impersonate the Client)

  This TGS Ticket is contained within the “Additional Ticket” field:



  Furthermore, since this Kerberos Ticket was obtained through the S4USelf extension, i want to highlight that in the SPN field, instead of actually pointing to the SPN of the AP Front End, so HTTP/WEB01, it points to the related Service Account, that is WEB01$.



• The flags “Resource-Based Constrained-Delegation” & “Constrained-Delegation” both set to “1” / “TRUE”:

  The AP Front End within the KRB_TGS_REQ packet will set the flags “Resource-Based Constrained-Delegation” & “Constrained-Delegation” both to “1” / “TRUE”, this is done because in case of a FallBack, that is, if the “Constrained Delegation (Use any authentication Protocol)” fails, the Delegation can proceed with Resource Based Constrained Delegation - RBCD.



  Furthermore, i want to highlight that the TGS Ticket sent will have the “Forwardable” flag set to “1”, by default this characteristic is present in ALL TGS Tickets; that said, in this scenario the flag will be interpreted and therefore it is important to clarify.



5. KRB_TGS_REP (S4U2Proxy) / S4U2Proxy Response

The KDC, after performing the usual checks, analyzing the KRB_TGS_REQ (S4U2Proxy) packet received from the AP Front End, will perform further verifications sequentially:

1. The KDC checks whether the “TGS Ticket” used by the Client to access the AP Front End (HTTP/WEB01) is present in the received KRB_TGS_REQ (S4U2Proxy) packet (in this example it was obtained via the S4USelf extension); this would provide evidence to the KDC that the Client has indeed authenticated to the AP Front End (HTTP service on the WEB01 machine) (and that therefore the AP Front End can potentially impersonate the Client); additionally, it is necessary that this TGS Ticket has the “FORWARDABLE” flag set to “1” (positive outcome in this case).

2. The KDC, inspecting the SPN contained in the KRB_TGS_REQ (S4U2Proxy) packet, will understand that the AP Front End (ex HTTP/WEB01) wants to authenticate to a specific AP Back-End (ex CIFS/SQL01) on behalf of the Client; consequently, the KDC retrieves the Service Account of the AP Front End (WEB01$) and will verify whether the “msds-allowedtodelegateto” property contains the SPN of the requested AP Back End (in this case CIFS/SQL01) (positive outcome in this case).

Since the 1 verification and the 2 verification are positive (The KDC performs the verification sequentially, so, for example, if 1nd step fails the KDC makes the decision on how to proceed immediately) as in our case, then the KDC sends a KRB_TGS_REP (S4U2Proxy) packet to the AP Front End containing, in summary:

• A Client TGS Ticket to access the AP Back-End:

  The KDC then sends within a “KRB_TGS_REP (S4U2Proxy)” a TGS Ticket belonging to the Client (it contains the PAC of the domain user who authenticated to the AP Front End) valid for the AP Back-End (CIFS/SQL01)



  Furthermore, i want to highlight that the TGS Ticket sent will have the “Forwardable” flag set to “1”; by default, this feature is present in ALL TGS Tickets, that said in this scenario this flag will be interpreted and therefore it is important to specify it.



6. KRB_AP_REQ:

The AP Front End (HTTP service) after the usual checks, in summary, sends a “KRB_AP_REQ” packet to the AP Back-End (CIFS service) containing, in summary:

• The previously received TGS Ticket, that is, the one belonging to the Client (it contains the PAC of the domain user who authenticated to the AP Front End) and is valid for the AP Back-End (CIFS/SQL01).

7. KRB_AP_REP (Optional)

The AP Back-End, now that it has received the KRB_AP_REQ packet from the AP Front-End, in summary, after the usual checks, will allow the AP Front End access to the requested service (in this case the CIFS service hosted on the SQL01 machine); subsequently, depending on the requested service and if mutual authentication is required by the AP Front End (ex HTTP service), the AP Back-End (ex CIFS service) will send a KRB_AP_REP to the AP Front End (ex HTTP service).

I This is what happens in my home lab,; in another case, instead, the “KRB_AP_REP” packet is first sent from the AP Back End to the AP Front End and then another “KRB_AP_REP” from the AP Front End to the Client.

Finaly the AP Front-End successfully authenticated to the AP Back-End on behalf of the Client.

Resource Based Constrained Delegation (RBCD)

Resource Based Constrained Delegation" (RBCD) operates in a similar way to the classic “Constrained Delegation” (“Kerberos Only” & “Use Any Authentication Protocol”) with the difference that the configuration is done directly on the AP Back-End (ex CIFS) rather than on the AP Front End (ex HTTP); in this way the responsibility is shifted to the Back-End service.

Below is a diagram that explains how “Constrained Delegation” can be defined as a so-called “Outgoing” Constrained Delegation, because the configuration is done on the AP Front End, while “RBCD” can instead be defined as a so-called “Incoming” Constrained Delegation, since the configuration is instead done on the AP Back-End.

The KDC, in order to use RBCD, requires 2 prerequisites:

1. Configure RBCD on the AP Back-End

Since RBCD is executed by the KDC exclusively in case of a FallBack from a Constrained Delegation ("Kerberos Only" or “Use Any Authentication Protocol”), the configuration consists ALSO of NOT configuring “Constrained Delegation” on the “Computer” object acting as AP Front End:

So, now configure the RBDC by setting the attribute “ms-DS-Allowed-To-Act-On-Behalf-Of-Other-Identity” on the “Computer” object that acts as the AP Back End and entering as value the AP Front End (or rather its respective “Computer Account”) which is authorized to authenticate on behalf of a Client; this configuration can be executed exclusively using RSAT, specifically with the command “Set-ADComputer”:

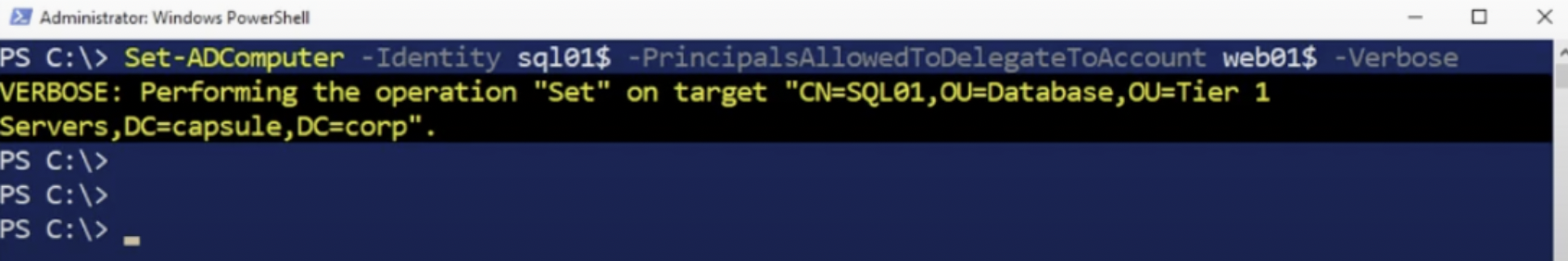

PS C:> Set-ADComputer -Identity <ComputerAccount_APBackEnd> -PrincipalsAllowedToDelegateToAccount <ComputerAccount_APFrontEnd>

To set the attribute “ms-DS-Allowed-To-Act-On-Behalf-Of-Other-Identity” it is NOT necessary to have Domain Admin privileges as is required for the other Kerberos Delegations, instead, it is sufficient to have write rights (for ex GenericalAll, GenericWrite and so on) on that property.

In reality, also an object of type “User” (domain account) can be configured with the Kerberos Resource Based Constrained Delegation (RBCD), however, to do so it is necessary that such account has at least 1 SPN configured.

In our example the RBCD is configured on the Computer “SQL01” which will act as AP Back End, i want to highlight that this modification is actually reflected on the respective Computer Account since it is contained in the “Computer” object, so the Computer Account “SQL01$” will have the property “ms-DS-Allowed-To-Act-On-Behalf-Of-Other-Identity”, this means that any service started from that machine with the Service Account SQL01$ (Computer Account) will have the RBCD enabled (so, all services started with the Local Service account such as by default the CIFS service); in this example, the AP Back End (SQL01$) will authorize exclusively the AP Front End (WEB01$) to authenticate on behalf of the Client.

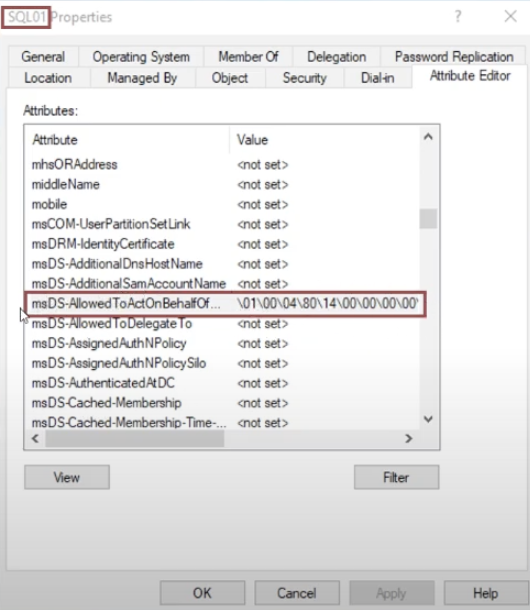

The value of the attribute ms-DS-Allowed-To-Act-On-Behalf-Of-Other-Identity will be graphically represented via ADUC in numerical form:

Finally, it is possible to inspect this attribute also via CLI using the commands shown in the screenshot, it can therefore be observed that the attribute “ms-DS-Allowed-To-Act-On-Behalf-Of-Other-Identity” of the Computer object SQL01 (similarly also the respective Computer Account SQL01$) contains the Computer object WEB01 (or rather its respective computer account WEB01$)

2. Configure the domain user that performs Kerberos authentication to the “Front-End” AP as “relayable”.

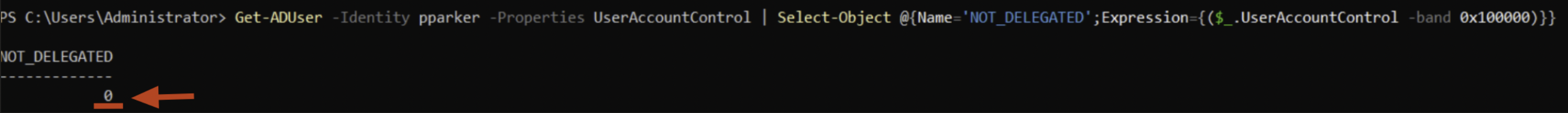

It is necessary that the domain user that performs Kerberos authentication to the “Front-End” AP does NOT have the “NOT_DELEGATED” flag set to “TRUE” / “1” in the “UserAccountControl” property; if it is, then that user is NOT delegable, by default ALL domain users do NOT have this flag enabled and are therefore relayable.

RBCD Flow

The RBCD works similar to the classic “Constrained Delegation” (“Kerberos Only” & “Use Any Authentication Protocol”) and it should be highlighted that it intervenes exclusively in case of FallBack, so when the “Constrained Delegation” fails, since this scenario is more common when a “Constrained Delegation (Use any authentication Protocol)” is initialized, we will analyze a Resource Based Constrained Delegation (RBCD) flow starting from a “Constrained Delegation (Use any authentication Protocol)” scenario.

To analyze with Wireshark ALL the flows that occur during this RBCD, I would have had to create from scratch a laboratory composed of a Front End Service that accepts a Kerberos authentication and develop within it a logic that triggers a further Kerberos authentication towards the Back-End Server, since I did not find a quick method to do this, the screenshots you will see in this section come from this guide.

Generally, all the integrity and authenticity verification operations that occur within traditional Kerberos authentication (sending & analyzing the “Authenticator” along with the relevant “Session Key” used to encrypt & decrypt parts of the packet) are also present with Kerberos Delegation enabled but in this case will NOT be mentioned, this is both because they have already been described previously and because it was preferred to instead emphasize the unique characteristics of RBCD.

As already mentioned previously, below we will describe the traditional process where Kerberos with RBCD is used, that is, from an Interactive Logon where a user enters their credentials within a WinLOGON GUI, and then subsequently uses Kerberos again in a Network Logon (roughly using cached credentials) to authenticate to a target service with Kerberos Unconstrained Delegation enabled; that said, in reality, the authentication process can also start in other types of authentications besides the traditional WinLOGON GUI (Interactive Logon).

1. Client authenticates to an AP Front End NOT using Kerberos.

A domain account authenticates NOT using the Kerberos protocol (NTLM, Basic, etc.) to an AP Front End.

If the AP Front End needs to authenticate to an AP Back End on behalf of the Client, the following actions will occur:

2. KRB_TGS_REQ (S4U2Self) / S4U2Self Request

Occasionally, when the AP Front End (ex HTTP service) needs to authenticate to the AP Back End (ex CIFS service) on behalf of the Client (ex CAPSULE.corp\vegeta), since the Client (ex CAPSULE.corp\vegeta) authenticated using, for example, the NTLM protocol, the AP Front End will NOT have the Client’s TGS Ticket and therefore CANNOT invoke S4U2Proxy as in the Constrained Delegation (Kerberos Only) scenario, consequently the AP Front End will resort to the “S4U2Self” extension, that is, it will send to the KDC a “KRB_TGS_REQ” packet containing, in summary,:

The S4U2Self extension in summary serves to obtain a TGS Ticket belonging to a specific Client (ex CAPSULE.corp\vegeta) valid for the service itself, that is, to the AP Front End (ex HTTP)

• The AP Front End shares its own TGT Ticket

  Every domain machine during its startup will perform a Kerberos authentication using its respective Computer Account, consequently the WEB01 machine will also have stored in memory the TGT Ticket of the WEB01$ account.

  In this scenario the AP Front End will send the TGT Ticket of its Computer Account.



• SPN containing the Service Account of the AP Front End (WEB01$)

  As previously mentioned, the SPN field can validly accept different types of data, including the insertion of the Service Account instead of an SPN; in this case, the Service Account of the AP Front End (for ex HTTP) will be indicated, in this way the TGS Ticket issued will be valid for the AP Front End, that is, for itself; in this case it is the Computer Account WEB01$



• The name of the domain account that the AP Front End wants to impersonate (ex CAPSULE.corp\vegeta).

  The AP Front End needs to have a TGS Ticket valid for itself that belongs to the Client (ex CAPSULE.corp\vegeta), consequently the AP Front End will specify the name of the domain account it wants to impersonate, that is, the account that connected to the AP Front End (ex CAPSULE.corp\vegeta):

  This data is inserted in both structures “PA-S4U-X509-USER” & “PA-FOR-USER” (added through the S4UProxy extension)




  In this way, the TGS Ticket valid for the AP Front End will belong to the account specified here, that is, CAPSULE.corp\vegeta.

By analyzing the packet on my home lab through S4U Request with Rubeus I do NOT find the “PA-S4U-X509-USER” data structure BUT I do find “PA-FOR-USER”.

3. KRB_TGS_REP (S4U2Self) / S4U2Self Response

The KDC, after performing the usual checks, retrieves within the KRB_TGS_REQ (S4U2Self) packet the Service Account contained in the SPN field (ex WEB01$), then it will verify if this Service Account has the property “TRUSTED_TO_AUTH_FOR_DELEGATION” enabled; since in this case the result will be negative as only RBCD was configured, as previously mentioned, the KDC will still issue a TGS Ticket belonging to the Client (vegeta) valid for the AP Front End (HTTP) BUT it will NOT have the “forwardable” flag set to 1.

POST 2021

As explained before (1 & 2), in POST 2021 scenario, the KDC will still issue a TGS Ticket with the FORWARDABLE flag set to 1.

Knowing this, therefore, the KDC sends a KRB_TGS_REP (S4U2Self) packet to the AP Front End containing, in summary:

• A TGS Ticket of the Client (ex CAPSULE.corp\vegeta) to access the AP Front End (HTTP)

  The KDC therefore sends within a “KRB_TGS_REP (S4U2Self)” a TGS Ticket belonging to the Client (contains the PAC of the domain account that authenticated via NTLM or Basic to the Front End service, in this case CAPSULE.corp\vegeta) valid specifically for the AP Front End (HTTP).



  As already said the TGS Ticket issued will NOT have the “forwardable” flag set to 1.



  This TGS Ticket belonging to the Client (ex CAPSULE.corp\vegeta) valid for the AP Front End (ex HTTP) will be used exclusively by the AP Front End as “evidence” to subsequently invoke the S4U2Proxy extension.

4. KRB_TGS_REQ (S4U2Proxy) / S4U2Proxy Request

Now that the AP Front End has a TGS Ticket to use as “evidence” to prove that the Client (ex CAPSULE.corp\vegeta) has authenticated to it (HTTP) (even though in reality it authenticated NOT using Kerberos) it can invoke a traditional “S4UProxy”, so, as previously seen, the AP Front End will send to the KDC a “KRB_TGS_REQ (S4U2Proxy)” packet containing, in summary,:

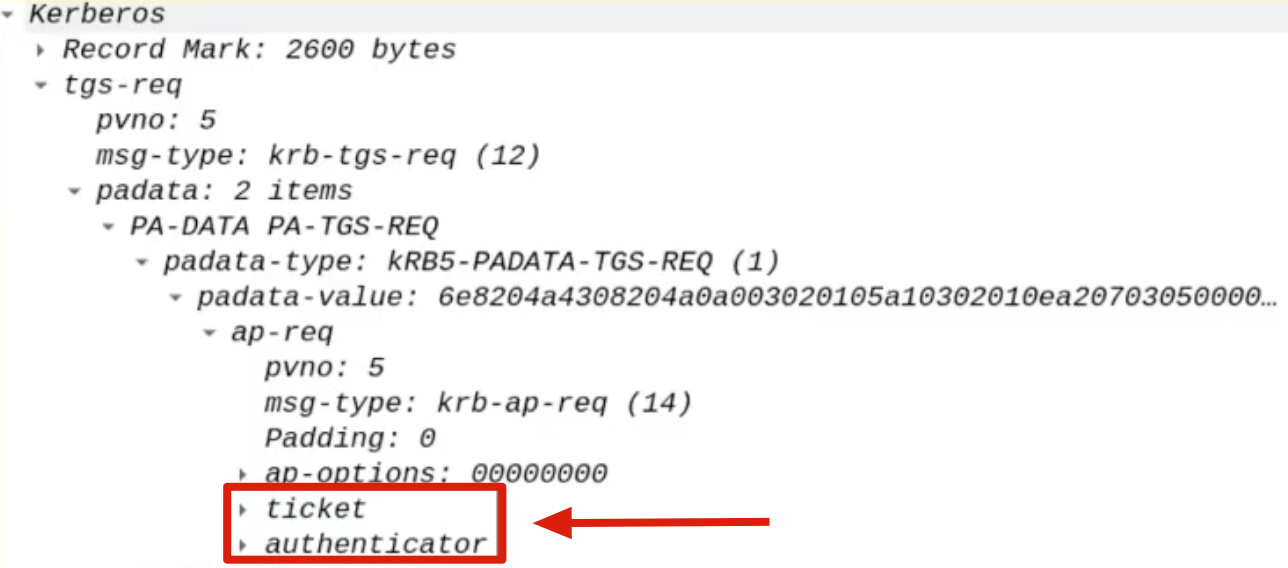

• The AP Front End shares its own TGT Ticket

  Every domain machine during its startup will perform a Kerberos authentication using its respective Computer Account, consequently the WEB01 machine will also have stored in memory the TGT Ticket of the WEB01$ account.

  In this scenario the AP Front End will send the TGT Ticket of its Computer Account.



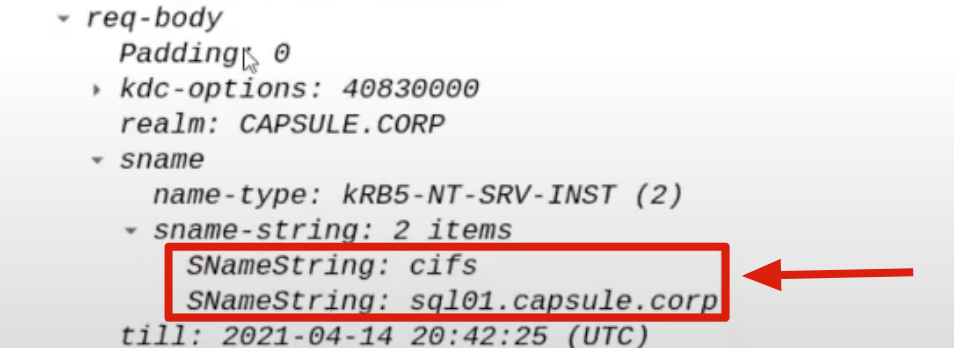

• SPN of the Back-End service

  The SPN related to / pointing to the Back-End service that the Front-End service needs to connect to on behalf of the Client is sent in plain-text; in this case it refers to the AP Back-End identified by the SPN “CIFS/SQL01”, that is, the CIFS service present on the “SQL01” machine.



• Client TGS Ticket (obtained via S4USelf)

  The TGS Ticket that the AP Front End previously received from the KDC using the “S4USelf” extension will be sent; it serves as evidence that the Client (ex CAPSULE.corp\vegeta) has successfully accessed the AP Front End (HTTP service on the WEB01 machine) (and therefore the AP Front End can potentially impersonate the Client).

  This TGS Ticket is contained within the “Additional Ticket” field:



  Furthermore, since this Kerberos Ticket was obtained via the S4USelf extension, it can be observed that in the SPN field, instead of actually pointing to the SPN of the AP Front End, that is HTTP/WEB01, it points to the respective Service Account, that is WEB01$.



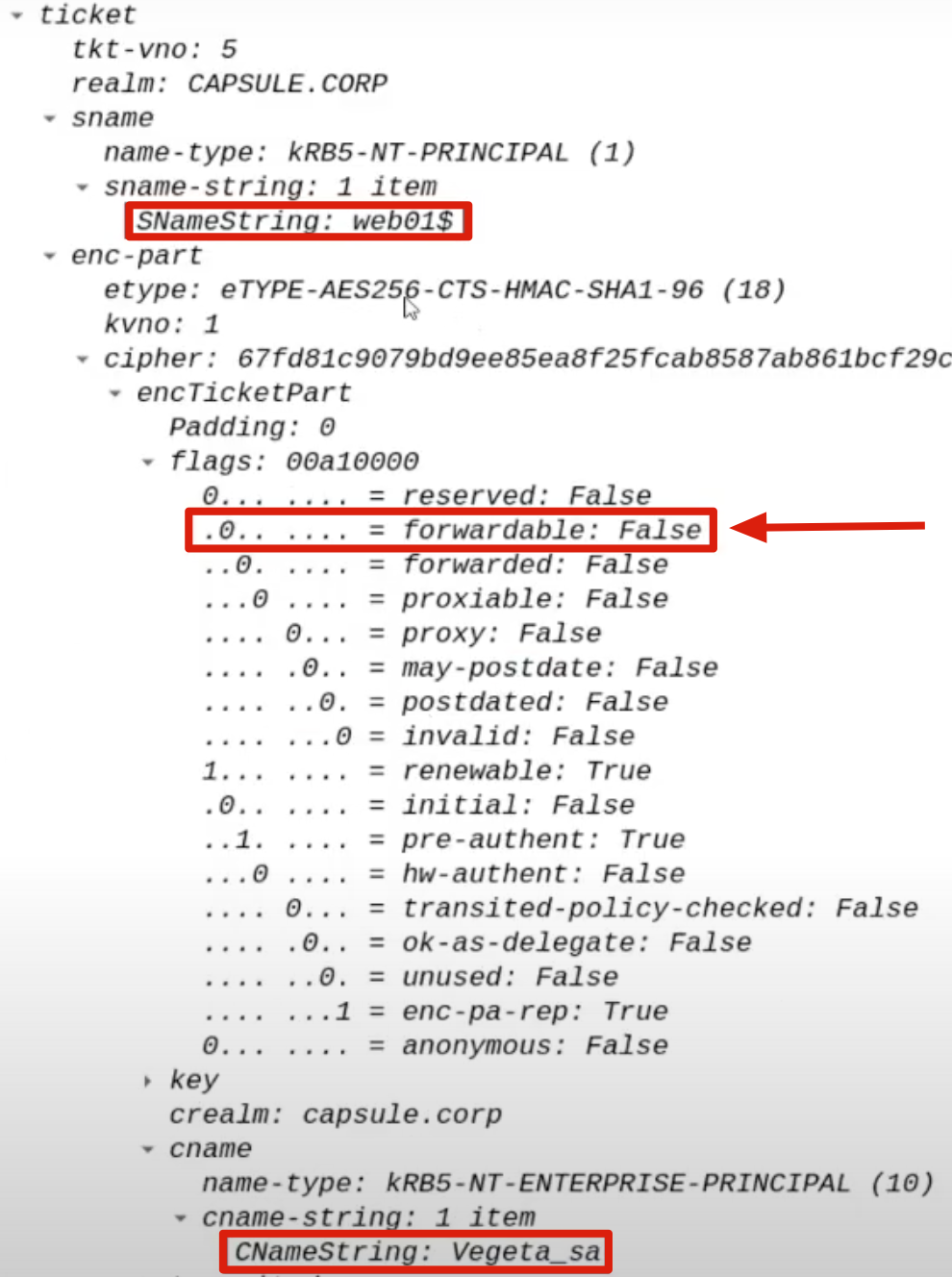

  I want to highlight that this TGS Ticket does NOT have the “FORWARDABLE” flag set.

• The flags “Resource-Based Constrained-Delegation” & “Constrained-Delegation” both set to “1” / “TRUE”:

  The AP Front End within the KRB_TGS_REQ packet will set the flags “Resource-Based Constrained-Delegation” & “Constrained-Delegation” both to “1” / “TRUE”; this is done so that in case of FallBack, that is, if the “Constrained Delegation (Kerberos only)” fails, the Delegation can proceed with Resource Based Constrained Delegation - RBCD.




5. KRB_TGS_REP (S4U2Proxy) / S4U2Proxy Response

The KDC, after performing the usual checks, analyzing the KRB_TGS_REQ (S4U2Proxy) packet received from the AP Front End, will carry out further verifications sequentially:

1. The KDC verifies if the “TGS Ticket” that the Client used to access the AP Front End (HTTP/WEB01) is present in the received KRB_TGS_REQ (S4U2Proxy) packet (in this example it was obtained via the S4USelf extension), this would provide evidence to the KDC that the Client has actually authenticated to the AP Front End (HTTP Service on the WEB01 machine) (and that therefore the AP Front End can potentially impersonate the Client); furthermore, it is necessary that this TGS Ticket has the “FORWARDABLE” flag set to “1” (NEGATIVE outcome in this case - 1, 2).

2. The KDC, inspecting the SPN contained in the KRB_TGS_REQ (S4U2Proxy) packet, will understand that the AP Front End (ex HTTP/WEB01) wants to authenticate to a specific AP Back-End (ex CIFS/SQL01) on behalf of the Client, consequently the KDC retrieves the Service Account of the AP Front End (WEB01$) and verifies if within its property “msds-allowedtodelegateto” the SPN of the requested AP Back End (in this case CIFS/SQL01) is present (NEGATIVE outcome in this case).

Since in this scenario the 1 verification FAILS (The KDC performs the verification sequentially, consequently, although the 2nd step also fails, the KDC makes the decision on how to proceed immediately because step 1 fails) and in the “KRB_TGS_REQ (S4UProxy)” the RBDC flag was configured to use this Kerberos Delegation in case of FallBack, the KDC proceeds to use the “Resource Based Constrained Delegation (RBCD)”, consequently, the KDC retrieves the Service Account (SQL01$) of the requested Back-End Service (CIFS) and verifies if it has the flag “ms-DS-Allowed-To-Act-On-Behalf-Of-Other-Identity” containing the Service Account (WEB01$) of the Front End Service (HTTP) that is attempting authentication on behalf of the Client (vegeta); if, as in this case, the outcome is positive, then the KDC sends a “KRB_TGS_REP (S4U2Proxy)” packet to the AP Front End containing, in summary:

POST 2021:

As explained before, in POST 2021 scenario, the KDC will receive a TGS Ticket issued by the S4USelf Response with the FORWARDABLE flag set to 1, so when the KDC start to do its check, the first verification will succeed BUT the second verification will FAIL because the AP Front End does NOT have Kerberos Delegation enabled, for this reason although the internals has been changed the KDC will switch to RBCD anyway.

• A Client TGS Ticket to access the AP in Back-End

The KDC then sends within a “KRB_TGS_REP (S4U2Proxy)” a TGS Ticket belonging to the Client (it contains the PAC of the domain user who authenticated to the AP Front End) valid for the AP Back-End (CIFS/SQL01)

Furthermore, i want to highlight that this TGS Ticket issued through the RBCD will have the “Forwardable” flag set to “1”, meaning it will be valid and equivalent to any other TGS Ticket normally issued by the KDC.

6. KRB_AP_REQ:

The AP Front End (HTTP service), after the usual checks, in summary, sends a “KRB_AP_REQ” packet to the AP Back-End (CIFS service) containing in summary:

• The previously received TGS Ticket, namely the one belonging to the Client (it contains the PAC of the domain user who authenticated to the AP Front End) and valid for the AP Back-End (CIFS/SQL01).

7. KRB_AP_REP (Optional)

The AP Back-End, now that it has received the KRB_AP_REQ packet from the AP Front End, in summary, after the necessary checks, will allow (if the AUTHORIZATION phase goes correctly) the AP Front End to access the requested service (in this case the CIFS service hosted on the SQL01 machine), subsequently, depending on the requested service and if mutual authentication is required by the AP Front End (e.g. HTTP service), the AP Back-End (e.g. CIFS service) will send a KRB_AP_REP to the AP Front End (e.g. HTTP service).

I This is what happens in my home lab; in another case, instead, the “KRB_AP_REP” packet is first sent from the AP Back End to the AP Front End and then another “KRB_AP_REP” from the AP Front End to the Client.

Finaly the AP Front End has succeeded in authenticating itself to the AP Back-End on behalf of the Client.

Outro

Kerberos Delegation is a beast to understand, and for this reason, if it’s the first time you are studying this topic, take your time and re-read the article several times.

Furthermore, i hope Microsoft will NOT change the Kerberos Delegation Internals anymore, but who knows 🤞​

This article was written in synergy with “Demystify Kerberos Delegation Attacks”, so if you have understood everything and you are interested about how to abuse it go and check it! If you have made it this far, congratulations!

References

• 1 - [English] You Do (Not) Understand Kerberos Delegation - Introduction
• 2 - [English] You Do (Not) Understand Kerberos Delegation - Unconstrained Delegation
• 3 - [English] You Do (Not) Understand Kerberos Delegation
• 4 - [English] You Do (Not) Understand Kerberos Delegation - RBCD
• https://labs.lares.com/fear-kerberos-pt4/
• https://zer1t0.gitlab.io/posts/attacking_ad/#kerberos-delegation
• https://adsecurity.org/?p=1667
• https://en.hackndo.com/constrained-unconstrained-delegation/
